Gen4

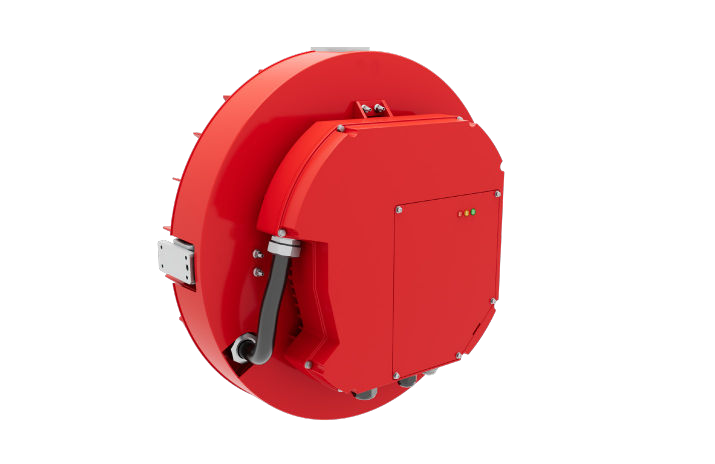

Aircore EC Catalog number decoder |
|
Family |
Frame |
Rated power |
Rated speed |
Volts |
VFD & I/O |
Reserved |
Bearings |
Shaft Length |
Wireless Support |
IP rating |
Grounding |
---|---|---|---|---|---|---|---|---|---|---|---|
XX | XX | XXXX | XXXX | X | X | X | X | X | X | X | X |
AE | 13 | 0500 | 1800 |
A: 460 V / 60 Hz B: 415V / 60 Hz |
A: Modbus RTU B: BACnet MS/TP |
A: none |
S: steel H: hybrid |
A: 3.25" | A: none | 4: IP54 |
O: Grounded Wye 3: Delta/HRG |
15 | 0750 | 2400 | |||||||||
18 | 1000 | 3600 | |||||||||
20 | more | more |
*Standard

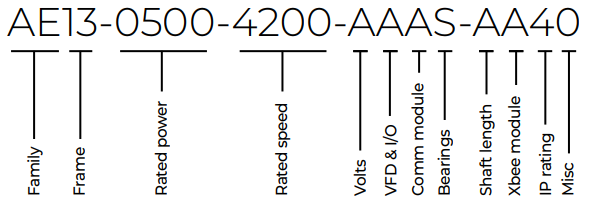

Example catalog number
|
Example decoded AE13 = Aircore EC, 13 frame 0500 = 5 HP 4200 = 4200 RPM AAAS = 460 V / Modbus RTU / Reserved / No wireless module / Steel bearings AA40 = 3.3" shaft length / No IoT module / IP54 rating / Grounded Wye |
