AE18, 7.5 HP, 1800 RPM - Datasheet

Bhavnesh Patel
  • Updated

Aircore EC Datasheet

AE18, 7.5 HP, 1800 RPM


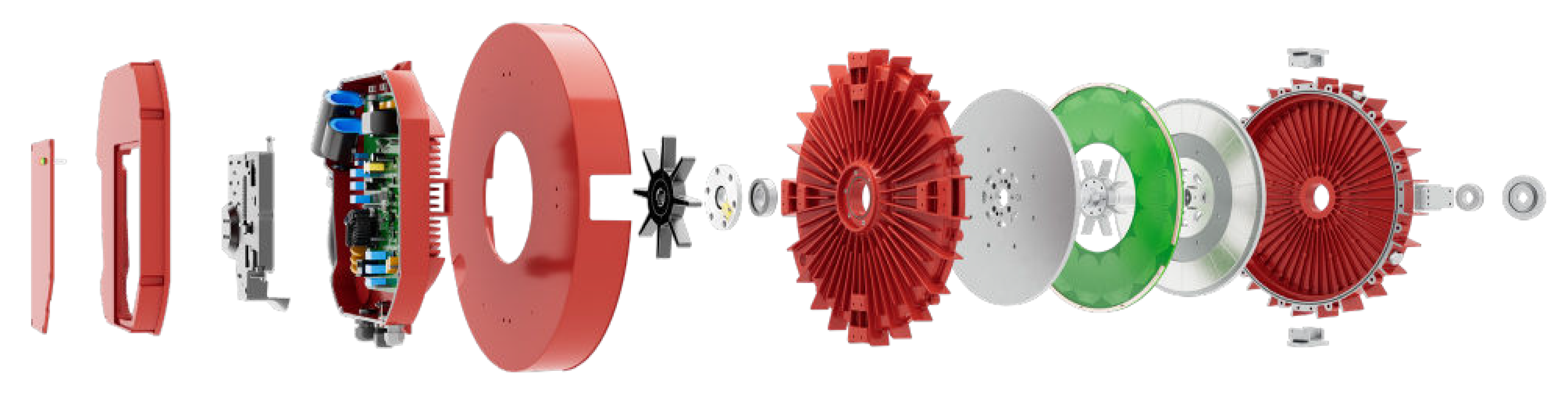

Motor and drive all in one
Integrated variable frequency drive (VFD) facilitates variable speed applications, reducing overall energy usage.

Power more with less

50% lighter, 30% quieter and up to 25% more efficient, averaging $2,300 in energy savings per motor.*

Powerful intelligence

  • State-of-the-art VFD for precise speed control which contributes to energy and audible noise reduction.
  • I-con motor control software enables users to fine tune operational parameters to their specific applications.
  • Maximum power density in a 50% smaller and lighter package.

Optimized efficiency

  • Meets highest efficiency standards at a wide range of operating conditions.
  • Increased operational efficiency by eliminating torque ripple, cogging, stator hysteresis and eddy current losses.
  • Compact form factor reduces wiring and facilitates direct mounting to fan applications, increasing efficiency by up to 25% compared to a traditional motor.

Sustainable solution

  • Our PCB stator uses 66% less copper and is 10x more reliable than traditional iron-core, copper-wound stators.
  • Enhanced serviceability due to modular design enables the reuse and extended lifespan of components, keeping them out of the landfill.
  • Increased efficiency reduces customer’s scope 2 emissions by up to 25%.



Applications

 CommercialHVAC-icon.png Commercial HVAC Pumps-icon.png  Pumps Material-Handling-icon.png  Material Handling






Recommended operating range

The recommended RPM range for this motor is 360-1800 RPM. Operating below 360 RPM is not advised except during coasting or ramp-up. For operation outside of this recommended range, please contact Infinitum for a customized solution. These curves are for reference only; actual performance may vary.



Motor Information

Rated power

7.5 HP, 5.6 kW

Rated torque

 22.1 lb-ft, 30 Nm
Rated speed

1800 RPM

Max speed

 2160 RPM (see above)

Min speed

 100 RPM (see above)

Weight (motor & drive)

 99.6 lbs, 45.2 kg

Frame diameter

 18.6", 47.2 cm

Length (motor & drive)

 8.7", 22.1 cm

System efficiency

 91% (460 VAC), 90.4%* (415 V), 90.2%* (575 V)
Duty cycle

Continuous

Variable speed

 Yes, integrated VFD

Service factor

 1.0

Motor thermal protection

 Electronically-protected L

Motor type

 TEFC

Enclosure rating

 IP54

*Calculated.

Electrical

Supply voltage

460 VAC ± 10%, 415 VAC ± 10%, 575 VAC ± 10%,

Supply phase

 3 Phase

Supply voltage frequency

 60 Hz ± 5%

Voltage imbalance

 ± 3% Phase to phase voltage

Short circuit current rating (SCCR)

 Input – 5 kA, 500 V maximum

Rated amps

 9.0 A (460 VAC), 9.9 A* (415 VAC), 6.9 A* (575 VAC)

Motor insulation class

 B

Grounding

 Grounded Wye, Delta, HRG

*Calculated.

Mechanical

Direction of rotation

 CW/CCW

Motor frame material

 Aluminum

Rotor inertia

 0.49 kg.m^2

Bearing type – DE

Standard: steel, 6206 sealed, permanently lubricated
Optional: hybrid ceramic (see catalog number)

Bearing type – NDE

Standard: steel, 6206 sealed, permanently lubricated
Optional: hybrid ceramic (see catalog number)

Grease specification

Mobil polyrex EM

Regreasable

 No

Grounding brushes

 Included – NDE

Shaft design

 Keyed

Motor mounting position

 Horizontal or vertical

Motor mounting type

 C-face (182TC) and body mount



Ambient operating conditions

Condition

 Operation Storage & transportation
Altitude

0 to 3300 ft. (1,000 m) above sea level

9% power derate per 1,000 m up
to 4,000 m

 NA

Ambient temperature

-13 to 104 °F (-25 to 40 °C)

2% power derate per 1 °C up to 50 °C



Relative humidity

95%, No condensation allowed

95%, No condensation allowed

Contamination levels

No conductive dust allowed

No conductive dust allowed






Control Connections

Refer to IOM Manual for more details.



Description

 Quantity Type

Analog input

Software selectable for voltage or current input

1

Voltage signal – 0 to 10 VDC, RIN = 20 kΩ
Current signal – 4 to 20 mA, RIN = 500 Ω
Resolution – 0.1%
Accuracy – ± 5%

Analog output



1

Voltage – 10 VDC with 10 mA maximum for potentiometer

Auxiliary voltage

1

24 VDC user supply with ± 5% with 250 mA maximum

Digital input

4

24 VDC with internal or external supply
Input impedance – 1 kΩ

Digital output



2

Open drain output
Maximum switching voltage 40 VDC
Maximum switching current 350 mA

Relay output



1

Normally open (NO), normally closed (NC) contact
arrangements

Maximum switching voltage of 125 VAC / 30 VDC

Maximum switching current of:

NO – 10 A (VAC) / 5 A (VDC)

NC – 3 A (VAC) / 3 A (VDC)

EIA-485 Interface for Modbus RTU or BACnet MS/TP

1

Shielded twisted pair cable with impedance of 120 Ω
Half duplex Modbus or BACnet communication protocol

Modbus TCP

1

Ethernet for I-con





Certifications

Regulatory



UL 1004-7

Standard for electronically protected motors

UL 1004-1

Rotating electrical machines – general requirements

CSA C22.2 No.77

Motors with inherent overheating protection

UL 61800-5-1

Standard for adjustable speed electrical power drive systems, Part 5-1: safety requirements & electrical, thermal & energy




Mounting and Dimensions mm [inches]

Below are the measurements needed for installation.

  • There are four mounting pad locations.
  • Each pad is spaced 90° apart, containing 4 mounting holes and one lifting eye hole.
  • The DE face of the mounting block has threaded holes for four bolts (1/2”-13).
  • All bolt holes should be used for secure mounting of the motor to equipment.
Frame18-Bracket.png Frame18-Ring.png
Frame18-Profile.png Frame18-Back.png



Catalog number decoder

Ordering Information

Catalog number

Modbus

RTU

BACnet

MS/TP

Steel

bearings

Hybrid

bearings

Grounded

Wye

Delta, HRG

460V













AE18-0750-1800-AAAS-AA40

 X   X   X

AE18-0750-1800-AAAH-AA40

 X     X X

AE18-0750-1800-ABAH-AA40

   X   X X

AE18-0750-1800-ABAS-AA40

   X X   X





AE18-0750-1800-AAAS-AA43

 X   X     X

AE18-0750-1800-AAAH-AA43

 X     X   X

AE18-0750-1800-ABAH-AA43

   X   X   X

AE18-0750-1800-ABAS-AA43

   X X     X





415V



AE18-0750-1800-BAAS-AA40

 X   X   X

AE18-0750-1800-BAAH-AA40

 X     X X

AE18-0750-1800-BBAH-AA40

   X   X X

AE18-0750-1800-BBAS-AA40

   X X   X





AE18-0750-1800-BAAS-AA43

 X   X     X

AE18-0750-1800-BAAH-AA43

 X     X   X

AE18-0750-1800-BBAH-AA43

   X   X   X

AE18-0750-1800-BBAS-AA43

   X X     X





575V



AE18-0750-1800-CAAS-AA40

 X   X   X

AE18-0750-1800-CAAH-AA40

 X     X X

AE18-0750-1800-CBAH-AA40

   X   X X

AE18-0750-1800-CBAS-AA40

   X X   X





AE18-0750-1800-CAAS-AA43

 X   X     X

AE18-0750-1800-CAAH-AA43

 X     X   X

AE18-0750-1800-CBAH-AA43

   X   X   X

AE18-0750-1800-CBAS-AA43

   X X     X




We reserve the right to make technical changes or modify
the contents of this document without prior notice.
Copyright© 2024 Infinitum Electric, Inc. All rights reserved.


Office

106 Old Settlers Blvd
Suite D106
Round Rock, TX 78664


Contact

info@goinfinitum.com
goinfinitum.com
support.goinfinitum.com

* Infinitum motor system compared to IE4/ NEMA Super Premium AC Induction motor + VFD over a 10-year lifetime. Efficiencies are dependent on specific motor and application.

Infinitum 20250207
