Mounting Infinitum motors accommodate several different mounting schemes depending on the amount and type of space available for installation. The most common schemes include welded angle steel, bent metal frames, tubular mount, and C-Face. |
|

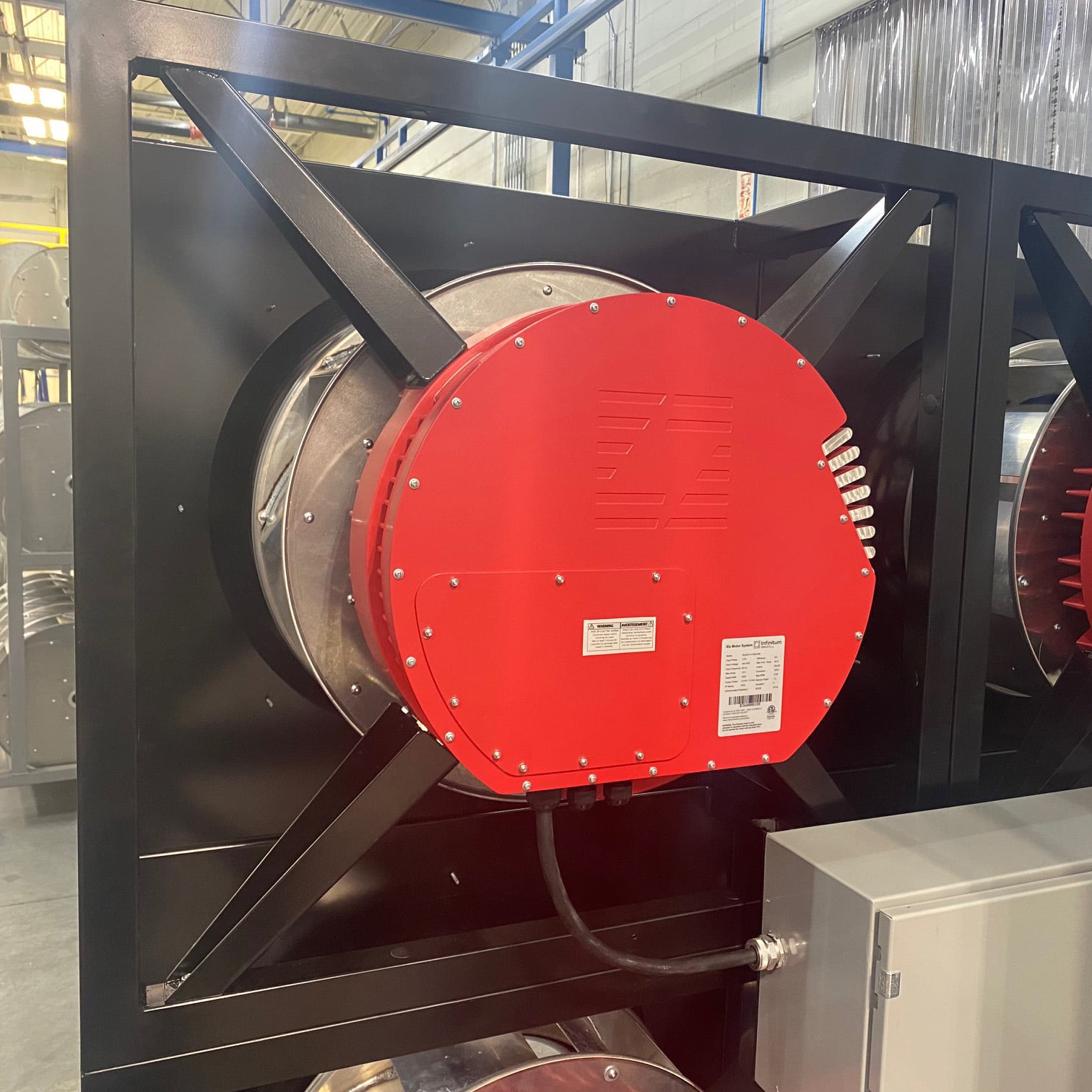

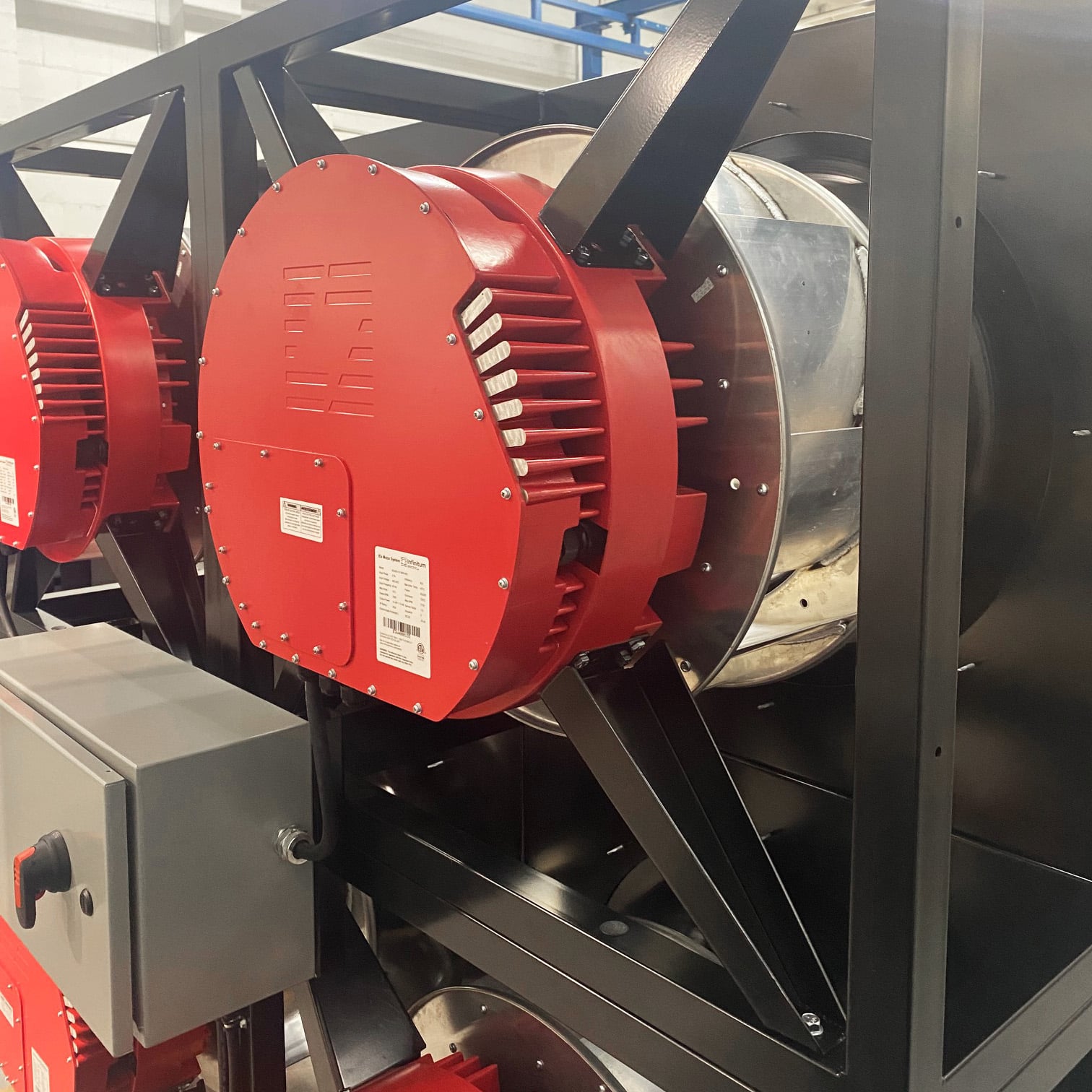

Steel Angle Mounting Options

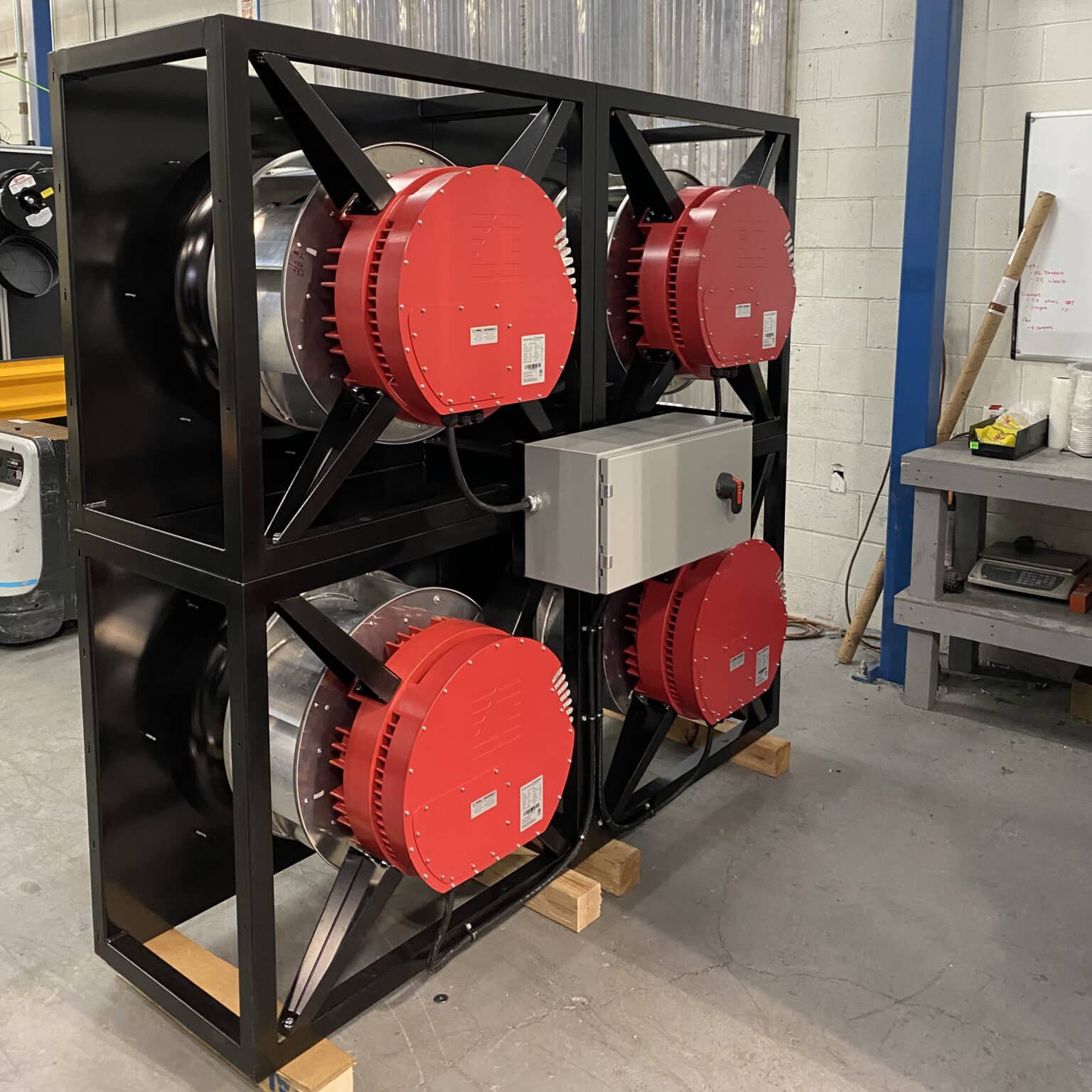

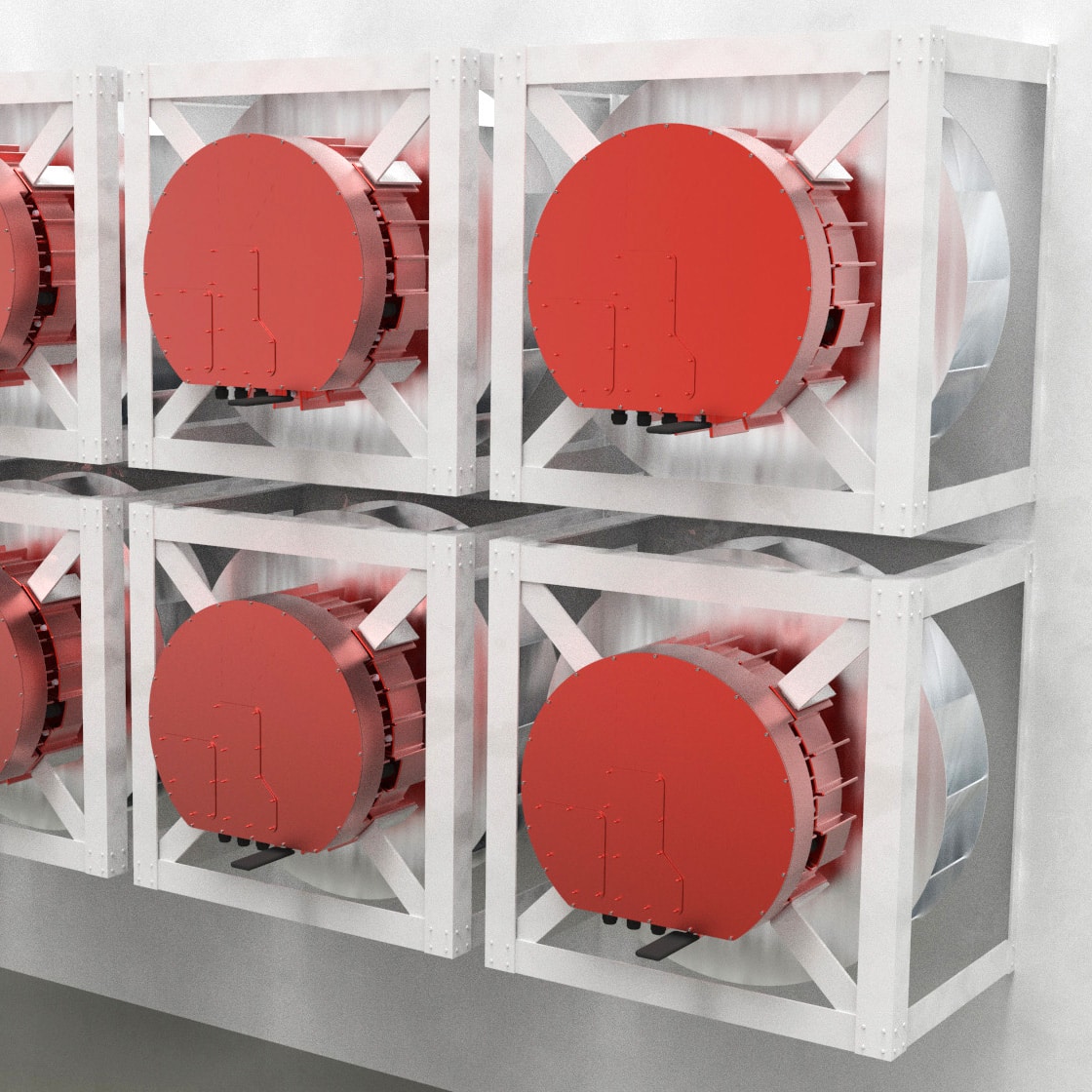

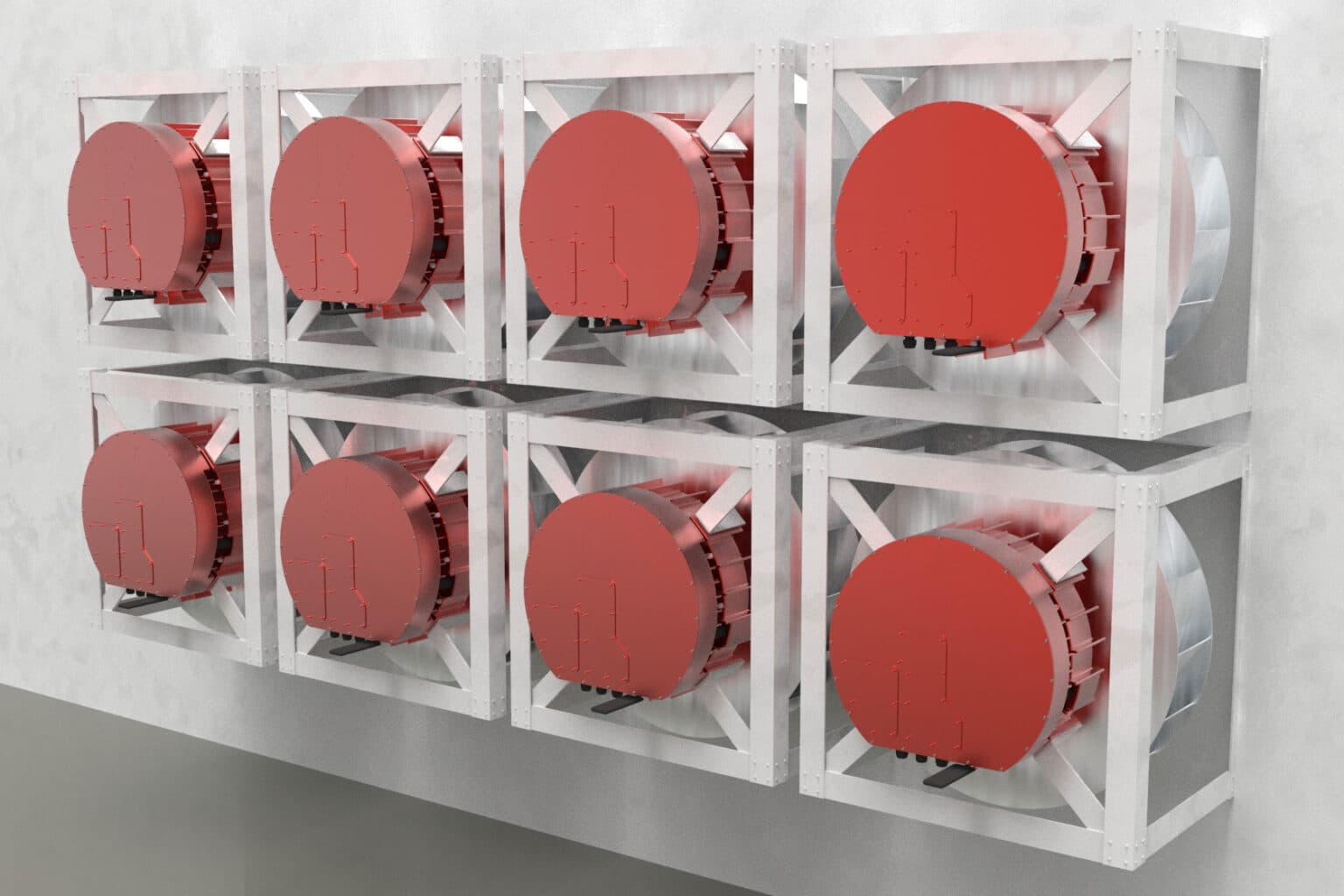

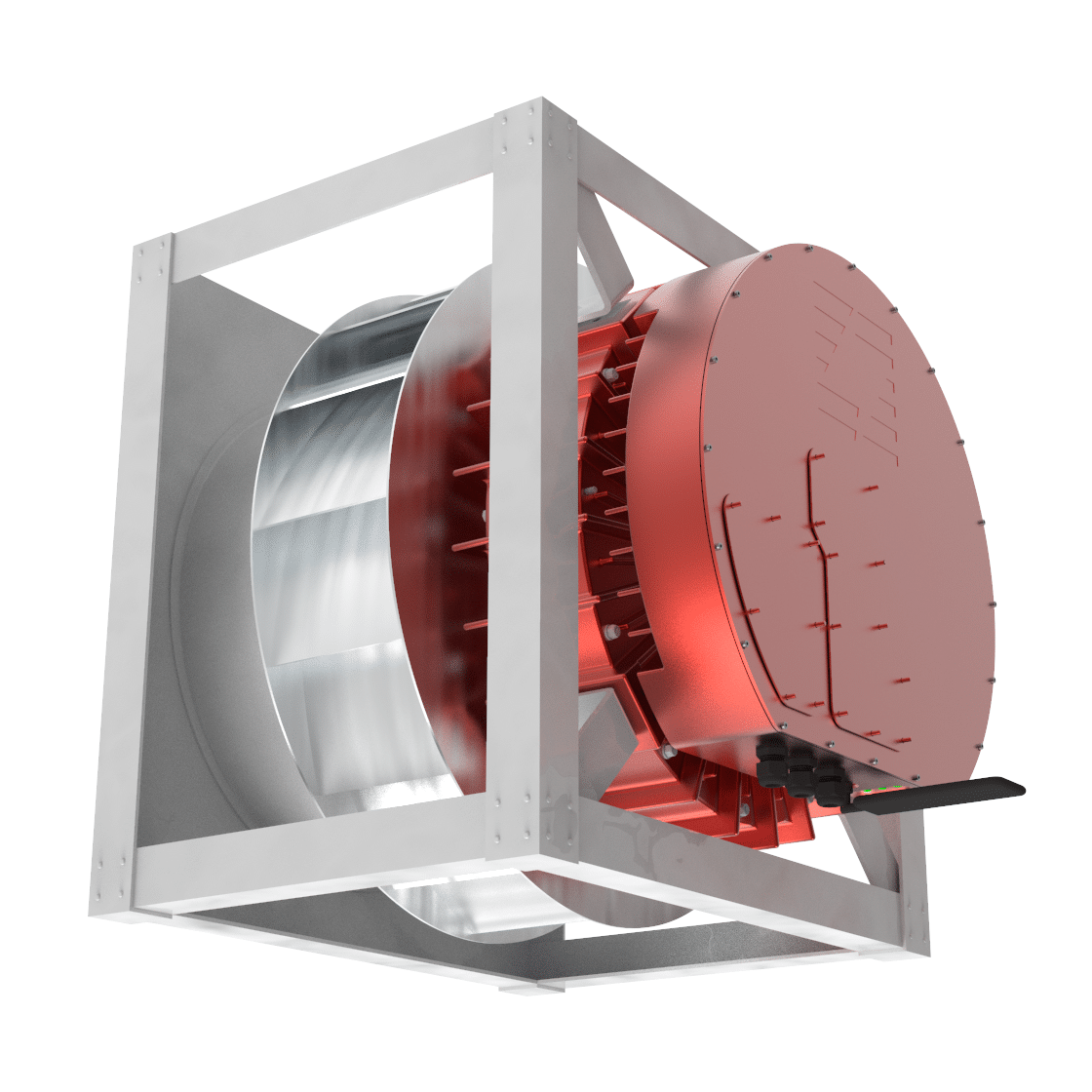

Welded angle steel aligned with mounting points. Cubes can be stacked and bolted together in an array of motors.
|
|

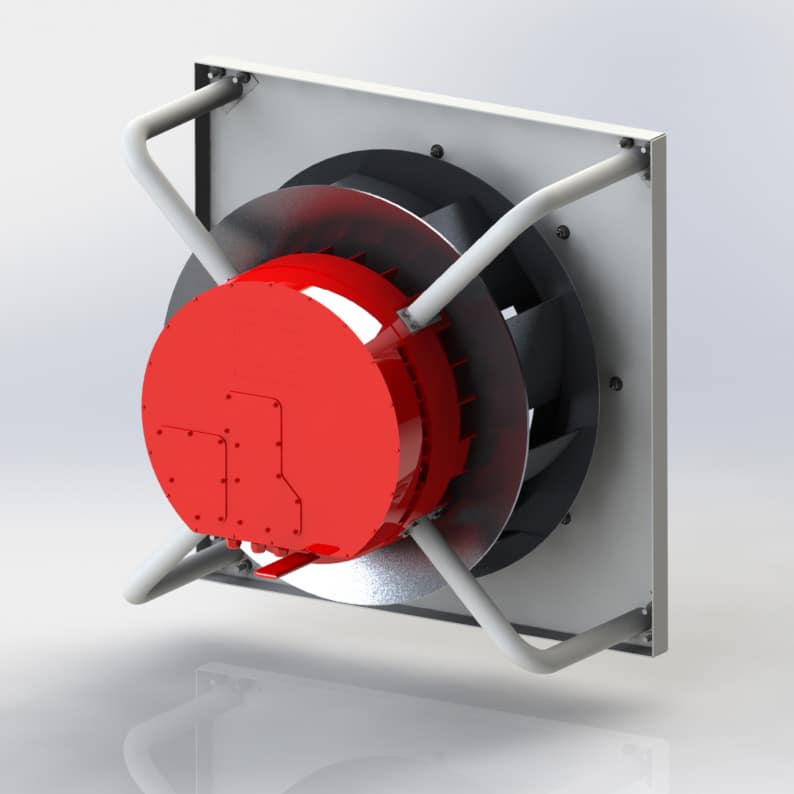

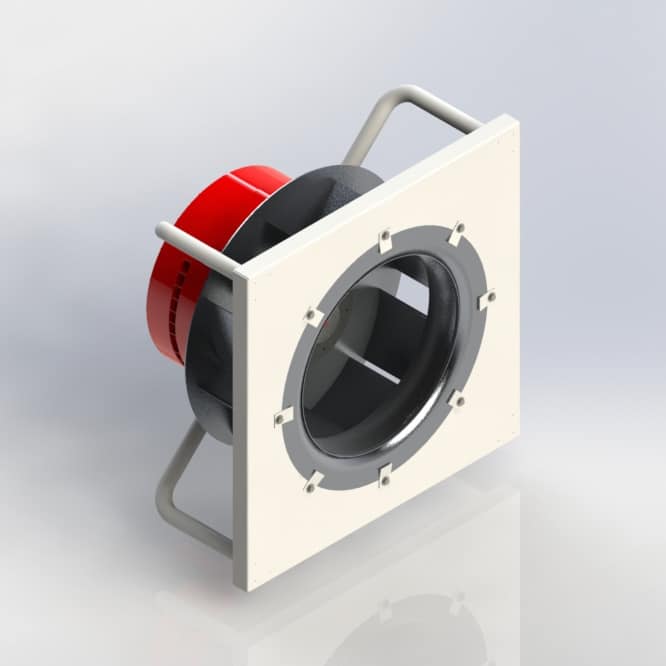

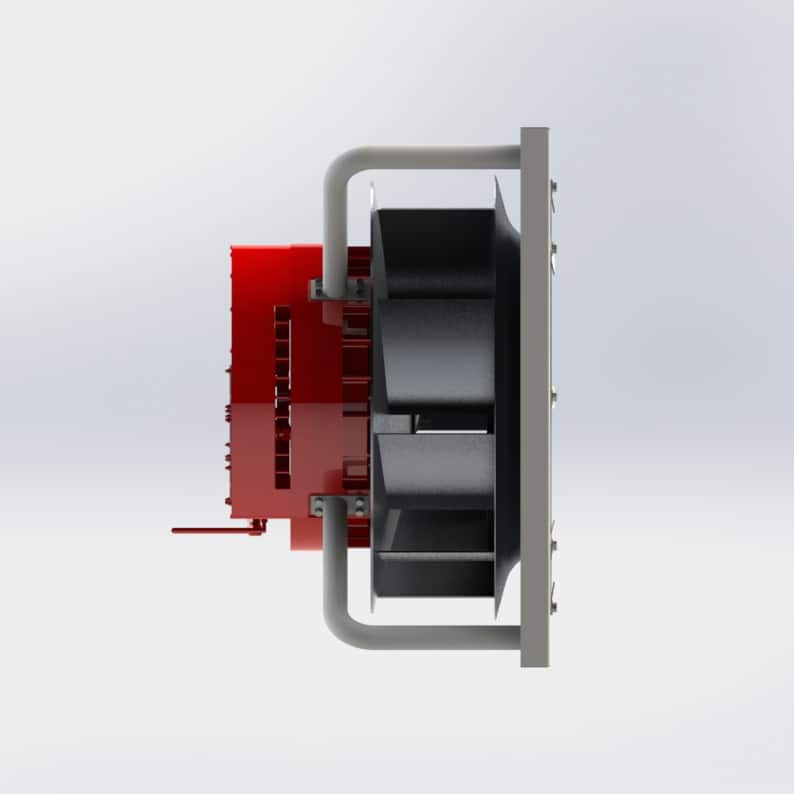

Tubular Motor Mounting Tubular mount with curved tubing that attaches the motor directly to the wall using mounting points. |
|
Bent Metal Frames Bent metal frames aligned with mounting points. Lighter than welded frames but require wall mounting (rather than stacking). |
|
C-Face Mount C-Face front mounting — |
