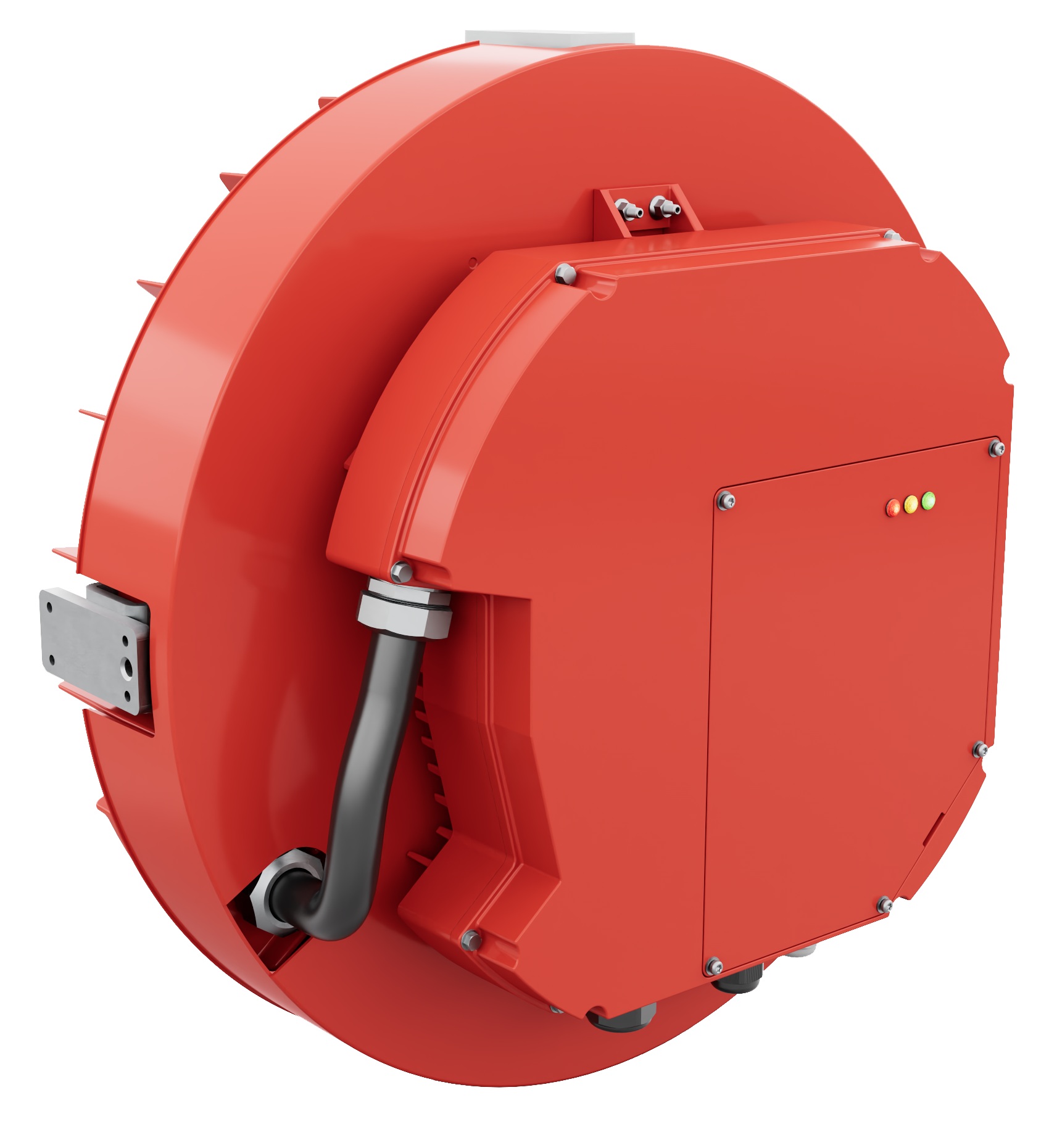

Aircore EC+ Service Parts Guide

Guide

Aircore EC+ Service Parts

04/25/2025

UNIVERSAL

Touch-up paint pen

Motor touch-up paint pen
(RAL 3031 – Orient Red)

LVP Powder and Paints
Part #: RAL-PEN-3031-SFG
Gloss level: Matte 20-30%

Touch-up spray paint

Motor touch-up spray paint (Orient Red)

LVP Powder and Paints
Part #: RAL-12OZ-3031-SFG
Gloss level: Matte 20-30%

1.5” shaft keyway-A

Shaft keyway
1018-1045 steel
1/4” x 1/4”, 1-1/2” long
Undersized
Default keyway

Infinitum catalog #
HDW200032 Rev A

2.0” shaft keyway-A

Shaft keyway
1018-1045 steel
1/4” x 1/4, 2” long
Special keyway

Infinitum catalog #
HDW200200 Rev A

480VDC external

power supply

Acopian
480VDC power supply
Model U500Y20

Acopian.com

Quick Start Guide

Aircore EC+ motor family
Covering: installation, storage, and operations

QSG DOC100001 Rev C
Download

GEN 2/3

Control Interface
Module (CIM)

CIM board is the host processor for the VFD

Infinitum catalog #
PCA500520-0 rev A

Controller IO
Board (CIO)

CIO board is the I/O connection board for the CIM card

Infinitum catalog #
PCA500530-1

Eyebolt-M10-A

Eyebolt
M10 – 1.5 thread,
20mm shank length
Steel
Two eyebolts
Used on 205 frame motors

Infinitum catalog #
HDW200128 rev A
McMASTER-CARR

Eyebolt-1/2”-13-A

Eyebolt
1/2” – 13 thread,
1-1/2” shank length
Steel
Two eyebolts
Used on 130, 150, and 180 frame motors

Infinitum catalog #
HDW200127 rev A
McMASTER-CARR

Colloidal silver

Colloidal silver shaft coating
Used with Gen2/3 shaft
grounding rings

Infinitum catalog #
PUR200082
AEGIS
CS015

Gen3 VFD cover

VFD cover for Gen3 motors
One-piece cover
Based on motor frame size
Note: does not include gasket.

Infinitum catalog #
205 Frame – FAB100264
180 Frame – FAB100275
150 Frame – FAB100280

Gen2 access
cover fastners

Fastner kit
Gen2 access cover nuts
Pack of 25

Infinitum catalog #
KIT102022

Gen3 VFD
cover gasket

Gaskets are sized according to motor frame sizes

Infinitum catalog #
205 Frame - FAB100686
180 Frame - FAB100687
150 Frame - FAB100688

Gen3 VFD access
cover fastners

Torx double SEMS screws
Used to attach Gen3 VFD covers
M4 – 0.7 thread x 18 mm shank length
15 screws
Note: Phillips screws may be provided,
subject to availability.

Infinitum catalog #
HDW200164

GEN 4

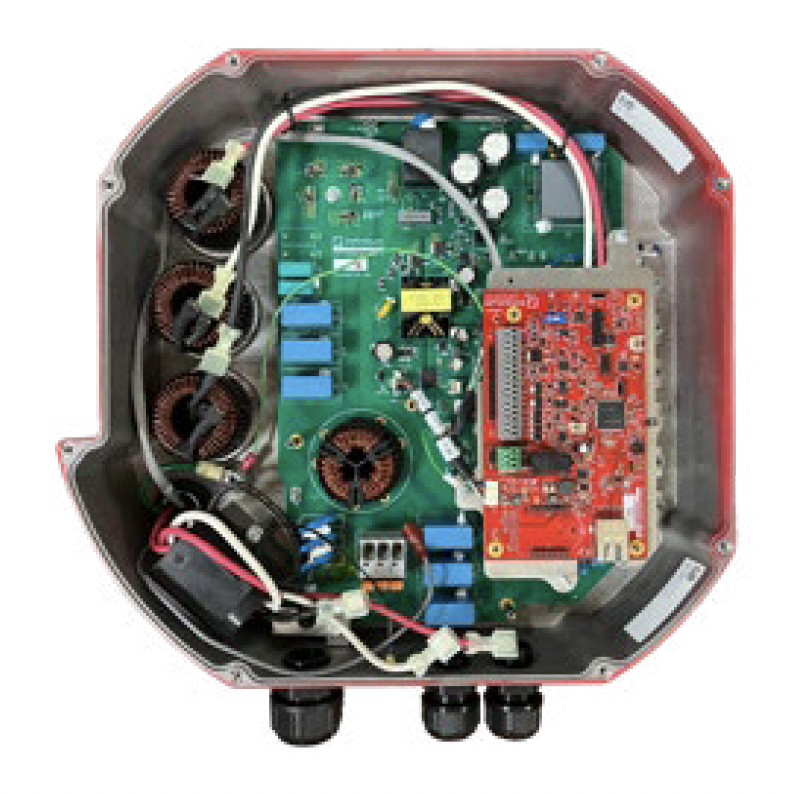

AE13 VFD

Variable Frequency Drive
Frame 13
Note: Smaller size

Infinitum catalog #
ASM100347

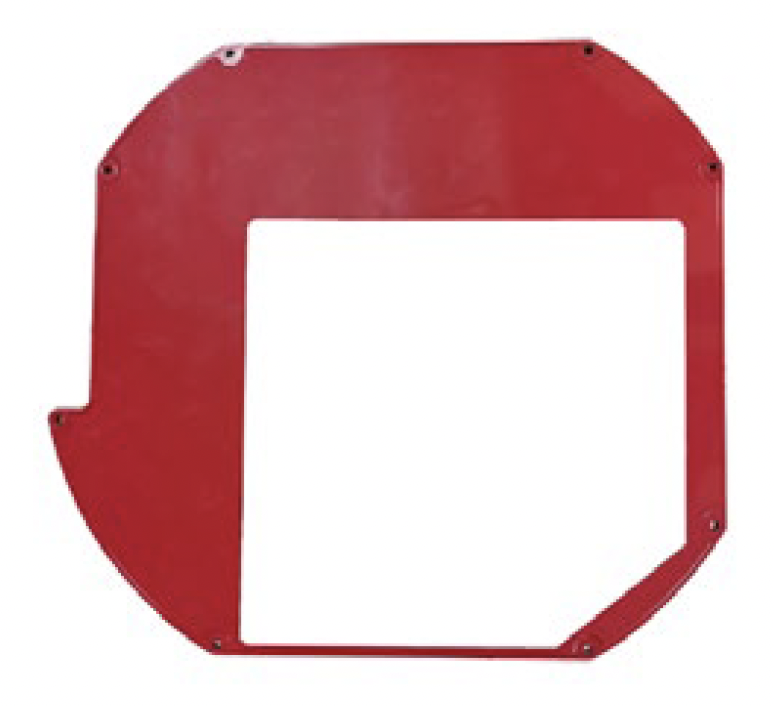

AE13 VFD main cover

Variable Frequency Drive cover

Frame 13

Note: Smaller size

Infinitum catalog #
FAB100709

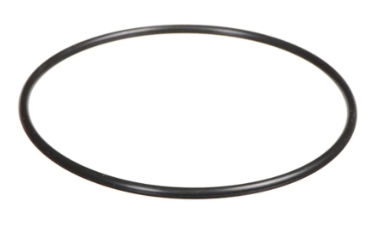

AE13 VFD main
cover gasket

O-ring for Variable Frequency Drive cover
Frame 13
Note: Smaller size

Infinitum catalog #
FAB100716

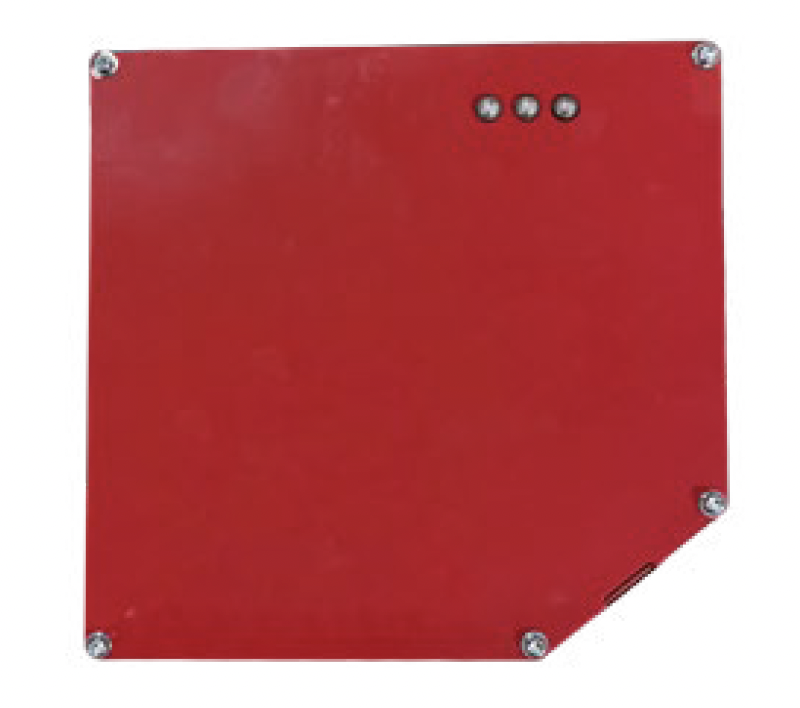

AE13 VFD access cover

Variable Frequency Drive access panel cover
Frame 13
Note: Smaller size

Infinitum catalog #
FAB100710

AE13 VFD access
cover gasket

Variable Frequency Drive access panel cover gasket
Frame 13
Note: Smaller size

Infinitum catalog #
FAB100715

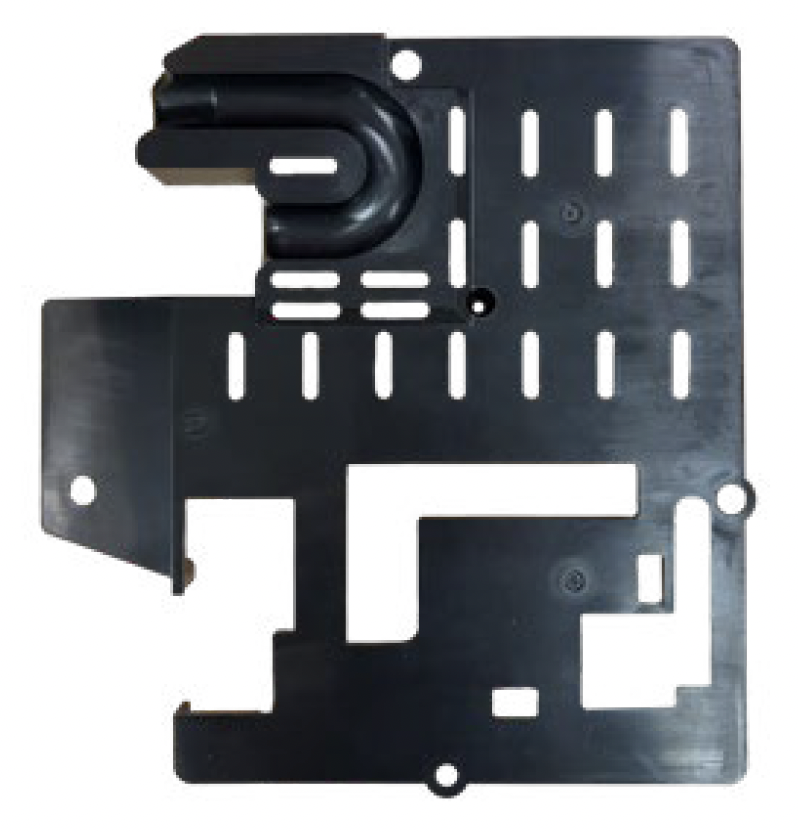

AE13 VFD touch cover

Protective cover in Variable Frequency Drive
Frame 13
Note: Smaller size

Infinitum catalog #
FAB100732

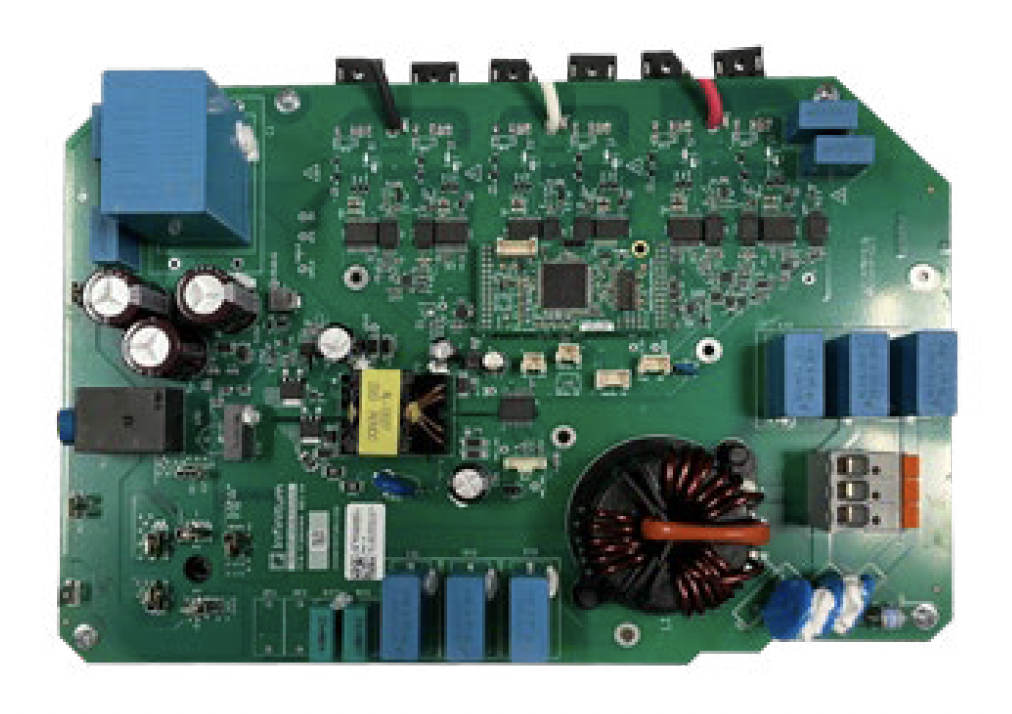

AE13 VFD main
power board

Inverter Board for AE13 Motors
Note: Smaller size

Infinitum catalog #
PCA500561

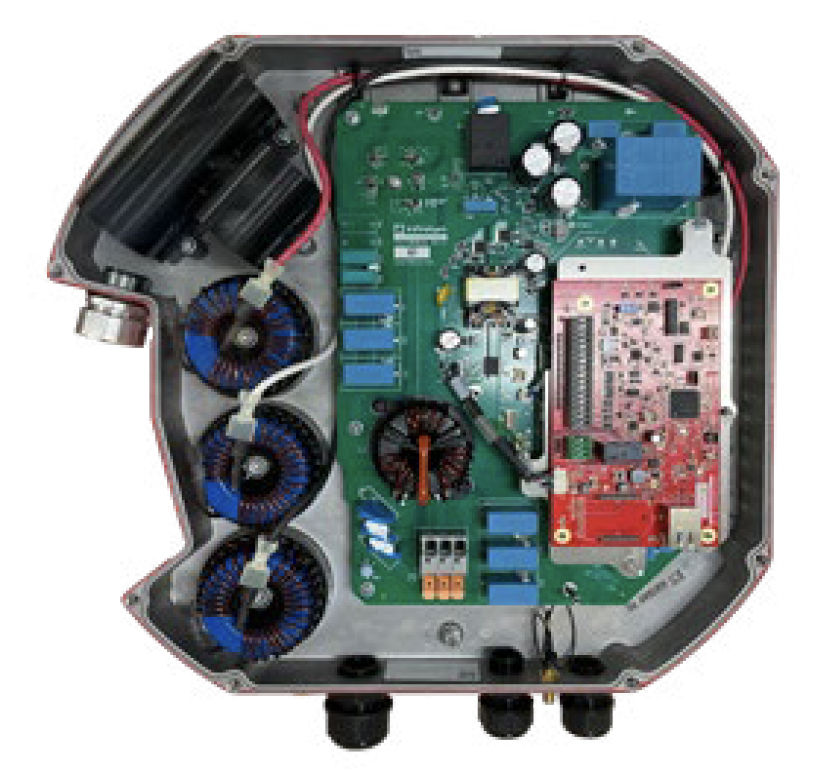

AE15/18/20 VFD

Variable Frequency Drive
Frames 15, 18, and 20

Infinitum catalog #
ASM100371

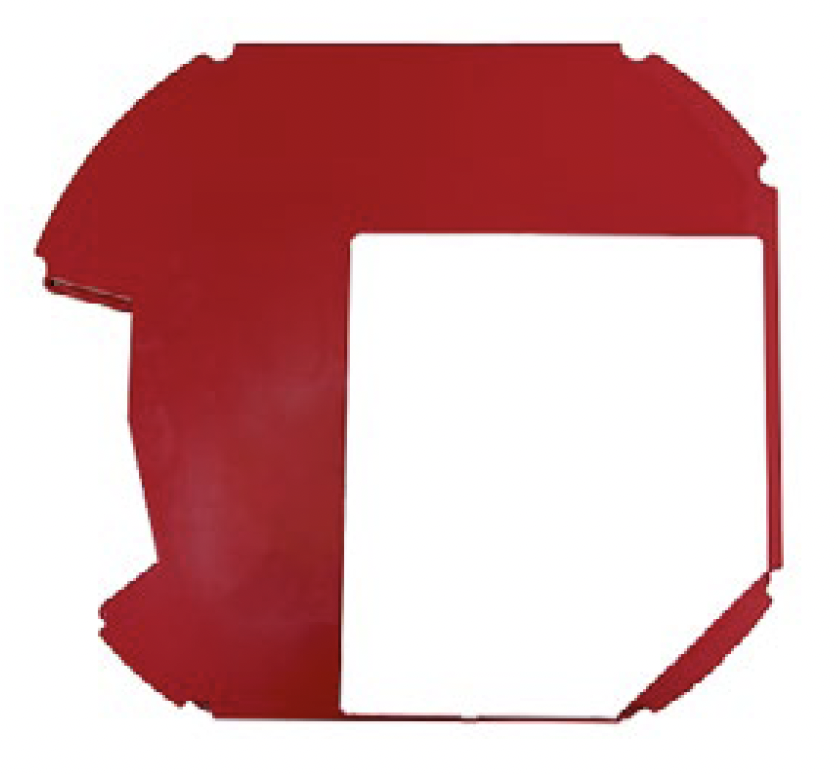

AE15/18/20 VFD
main cover

Main Variable Frequency Drive cover
Frames 15, 18, and 20
Note: Larger size

Infinitum catalog #
FAB100410

AE15/18/20 VFD
main cover gasket

Gasket for main Variable Frequency Drive cover
Frames 15, 18, and 20
Note: Larger size

Infinitum catalog #
FAB1007714

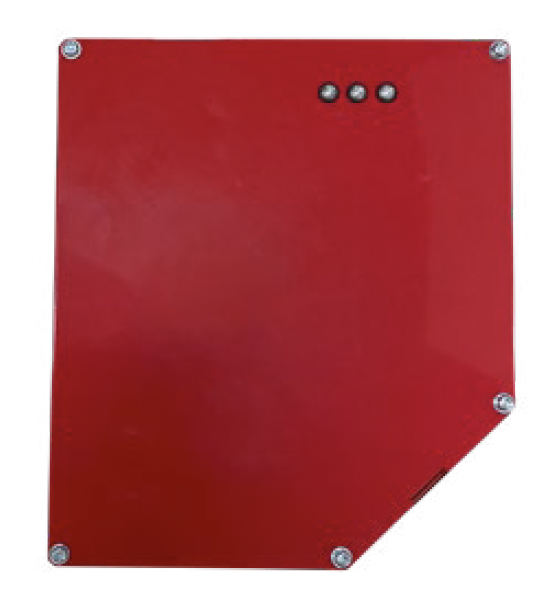

AE15/18/20 VFD
access cover

Variable Frequency Drive access panel cover
Frames 15, 18, and 20
Note: Larger size

Infinitum catalog #
FAB100758

AE15/18/20 VFD
access cover gasket

Variable Frequency Drive access panel cover gasket
Frames 15, 18, and 20
Note: Larger size

Infinitum catalog #
FAB100713

AE15/18/20 VFD
touch cover

Protective cover in Variable Frequency Drive
Frames 15, 18, and 20
Note: Larger size

Infinitum catalog #
FAB100703

AE15/18/20 VFD
power board

Power board in Variable Frequency Drive
Frames 15, 18, and 20
Note: Larger size

Infinitum catalog #

ASM100458

Lifting eyebolts

Eyebolts used to lift Gen4 motors
3/8” – 16 thread, 5/8” shaft length
2 per kit

Infinitum catalog #

HDW200205

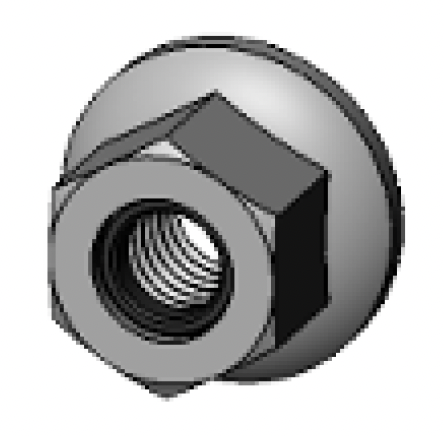

Gen4 VFD attachment
nuts

Attaches VFD to motor
8 per kit
Note: 6 are needed for Frame 13 VFD

Infinitum catalog #

HDW200243

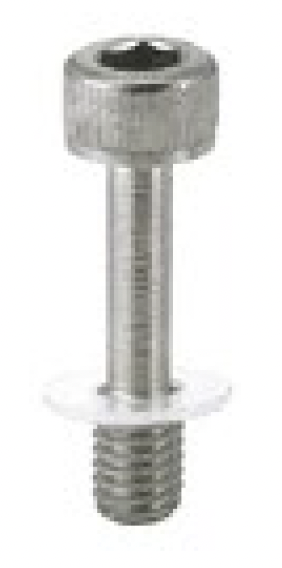

Gen4 VFD Access lid
captive screws

Attaches VFD lid to VFD for all Gen4
VFDs
100 pieces in kit, M4X0.7 X15
Fits all Gen4 VFDs

Infinitum Catalog #
HDW200220 rev PO1

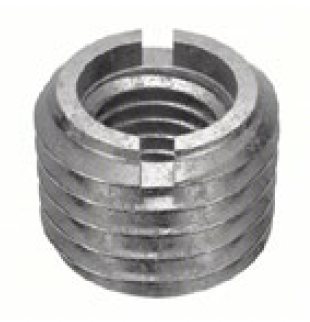

Gen4 VFD Access lid screw inserts

Inserts used in VFD housing for lid attachment.
100 pieces in kit, M4X0.7 X 5/16-24
Fits all Gen4 VFDs

Infinitum catalog #
HDW200239 Rev A

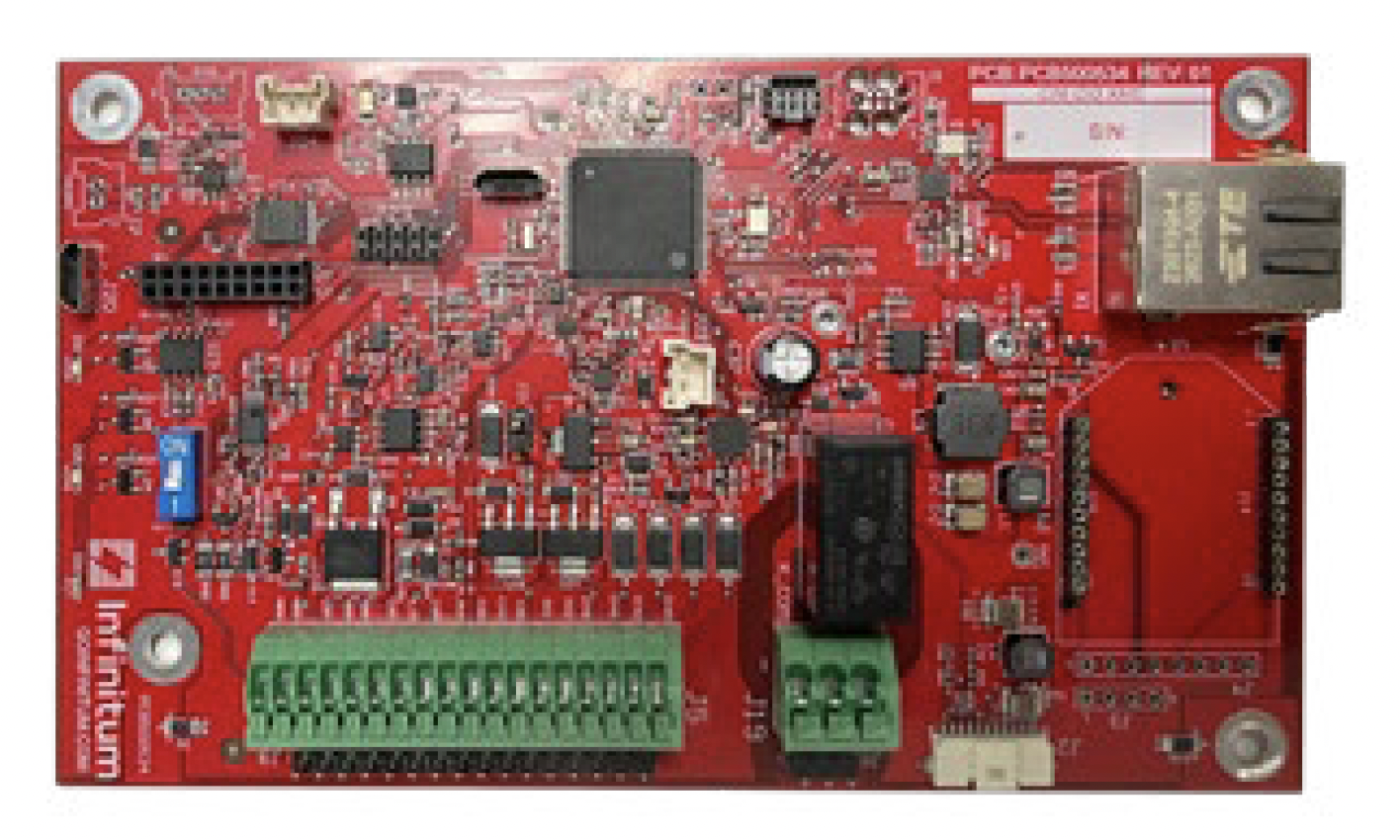

CIM-CIO board

Control Interface Module used in all
Gen4 motors

Infinitum catalog #
PCA500534

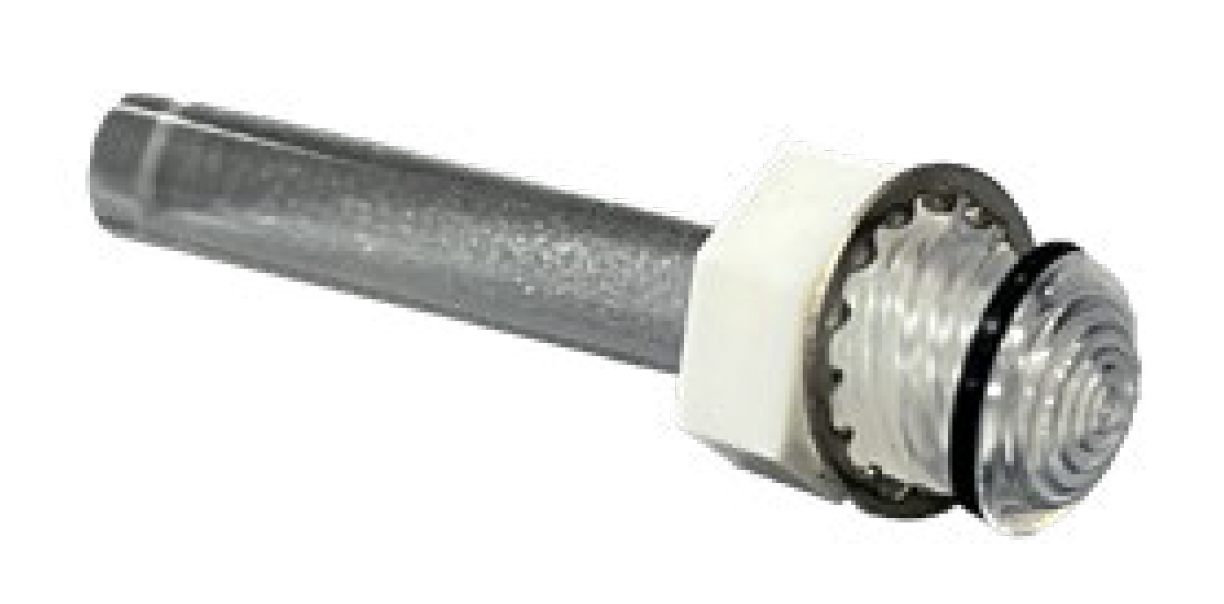

LED light pipes

Light pipes are used for status indication
3 pipes for each Variable Frequency Drive

Infinitum catalog #
PUR372071

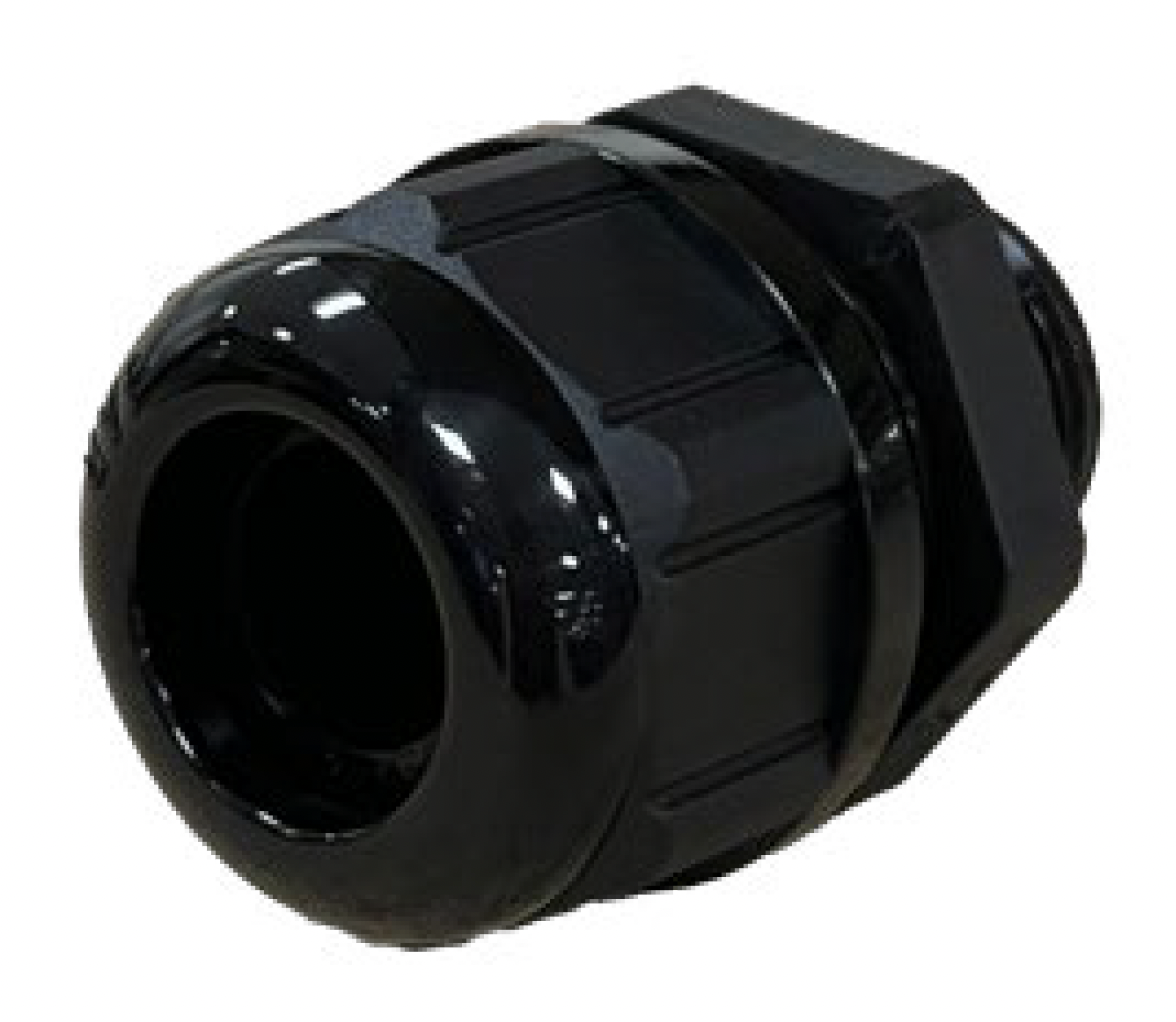

Ethernet port gland

Cable gland
M20 x 1.5
IP68

Infinitum catalog #
PUR200011

Control wiring gland

Cable gland
M20 x 1.5
IP67

Infinitum catalog #
PUR200012

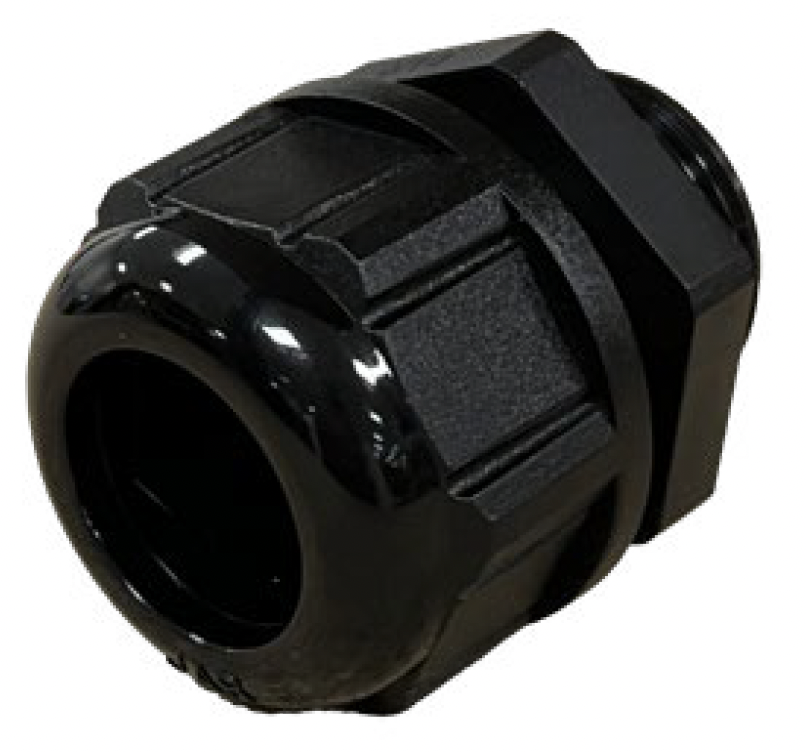

High voltage wire gland

Cable gland
M25 x 1.5
IP68

Infinitum catalog #
PUR200034

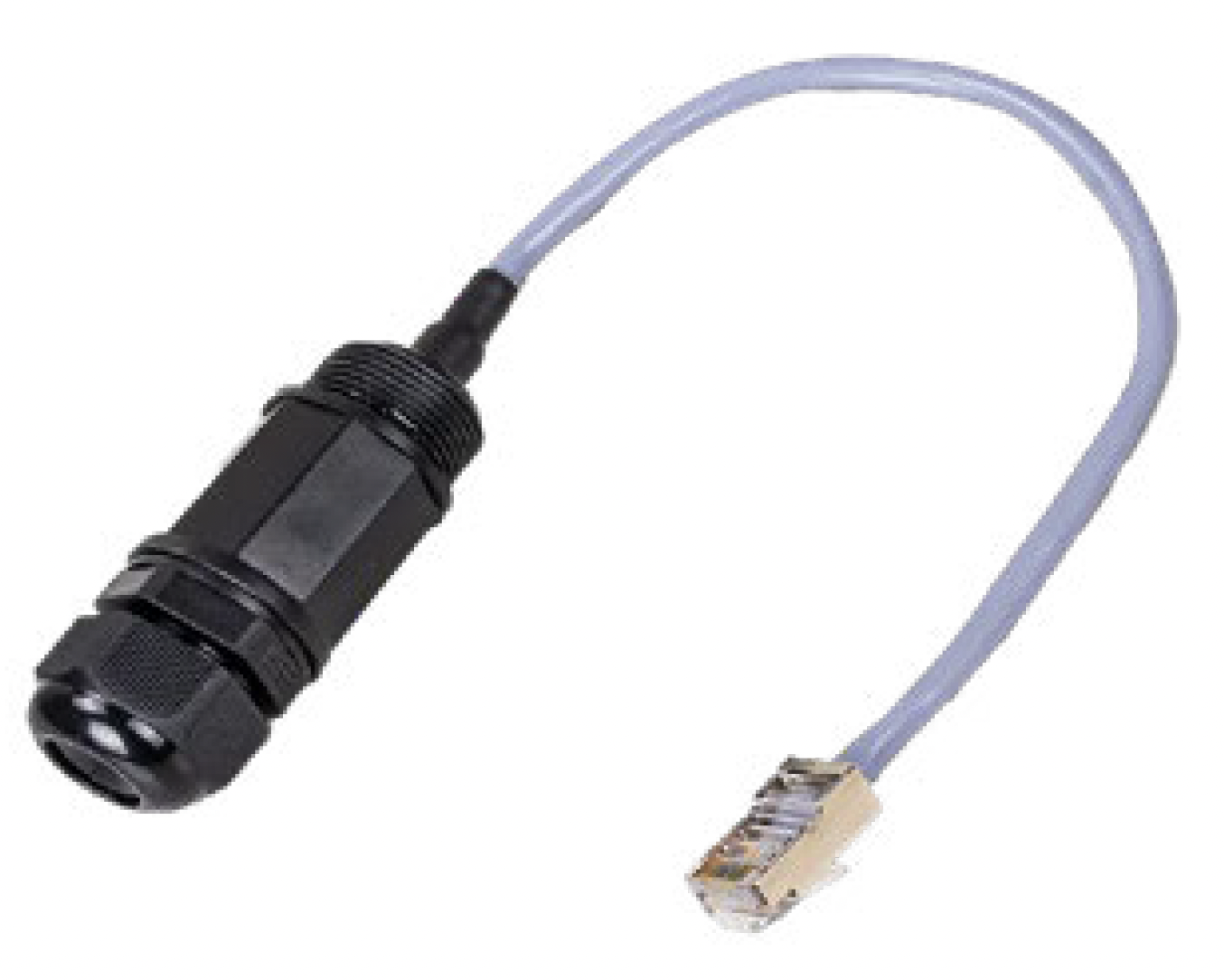

Ethernet cable gland

External ethernet port cable

Amazon: ANBMEST M20
RJ45 IP67 Ethernet LAN
double head CAT5 coupler
Amazon link

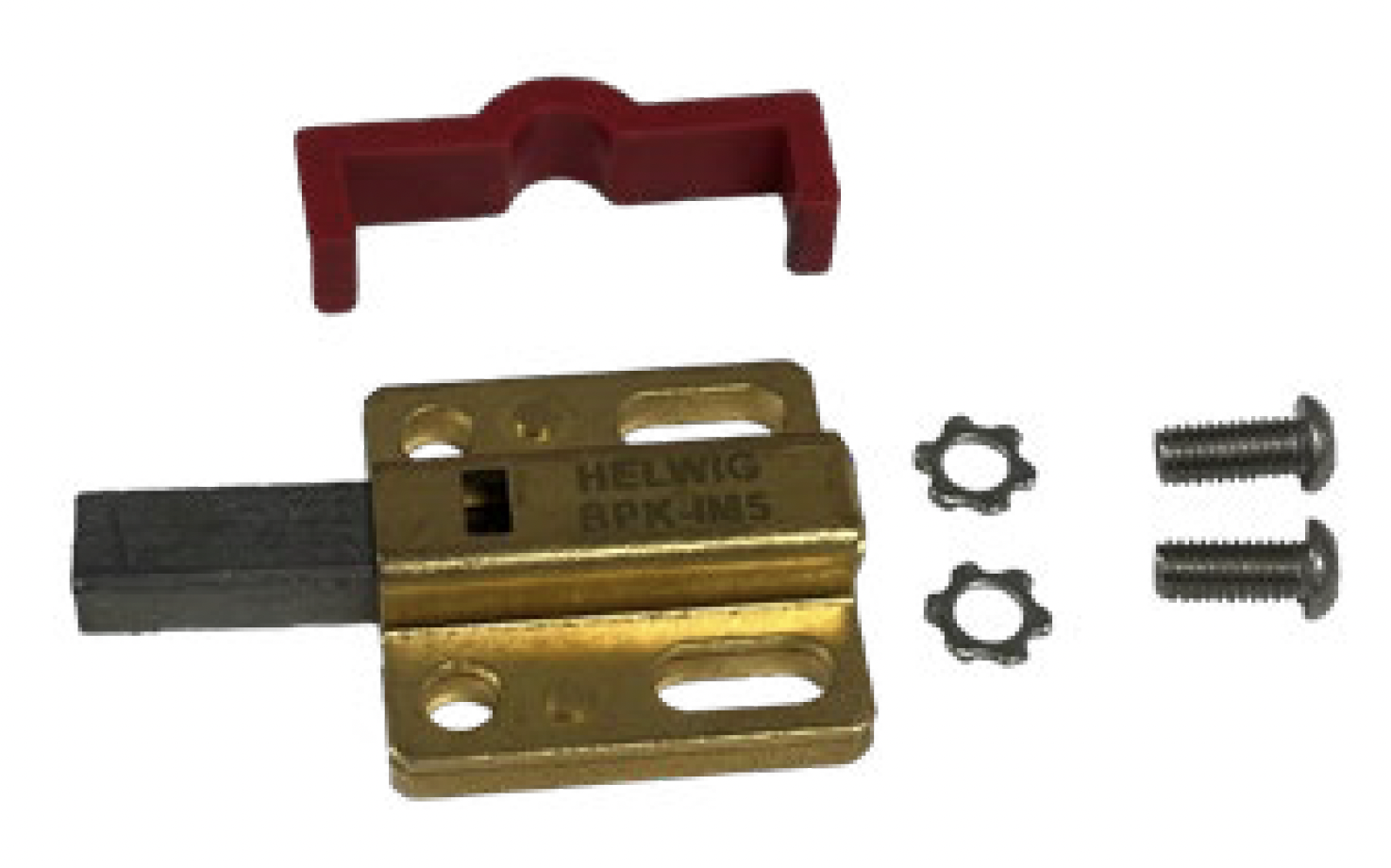

Helwig carbon brush

Grounding brushes used to reduce
shaft voltages

Infinitum catalog #
PUR373065
