Customize your motor system and instantly generate a tailored datasheet using our Motor Selection Tool (MST). |
Preview power, amperage, energy savings, and more. |
Aircore EC+ Do More With Less. |
|||
| Comprehensive, customizable power | |||
|
Outperform
Maximize Uptime
Reduce Emissions
|
|||
| Performance | ||||

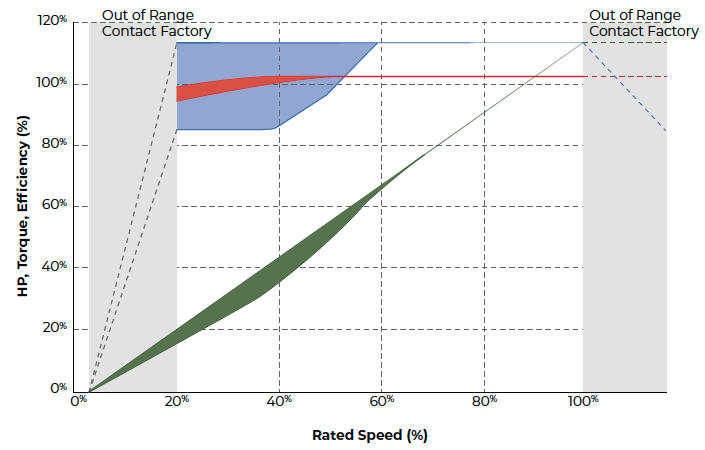

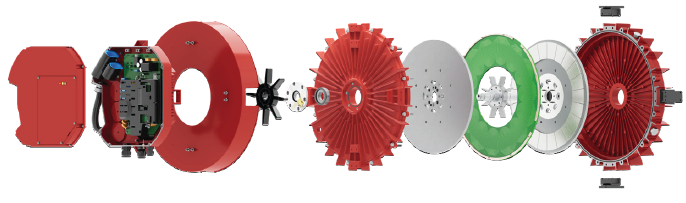

| The recommended RPM range for this motor is 360-2160 RPM. Operating below 360 RPM is not advised except during coasting or ramp-up. For operation outside of this recommended range, please contact Infinitum for a customized solution. These curves are for reference only; actual performance may vary. | ||||
| General Information | Electrical Information | |||
| Motor Technology | Axial Flux, PCB Stator | Supply Voltage |
415/460 VAC +/-10% 575 VAC +/-10% |
|
| VFD Technology | Integrated, SiC based High Efficiency Drives | Rated Amps* | 6 A ±10% (460 VAC) -18 A ±10% (415 VAC) | |
|
System Efficiency (Motor + VFD) |
89% to 93% | Maximum Voltage Imbalance | +/-3% Phase-Phase Voltage | |
| Rated Speed |
1800 to 4200RPM (See Table) |
Short Circuit Rating (SCCR) | 5kA | |
| Minimum Speed | 100RPM | Insulation Class |
MOT150 Class B |
|
| Maximum Speed | 120% Rated | Grounding |
Solid Ground High Resistance Ground (HRG) |
|
| Duty Cycle | Continuous | |||
| Service Factor | 1.0 | Mechanical Information | ||
| Cooling | TEFC | Rotation | CW, CCW | |
| Thermal Protection |
Electronically Protected (EP-L) |
Bearing (DE & NDE) | 6206 Hybrid Ceramic | |
| IP Rating | IP65 | Grease | Permanent Mobil Polyrex | |
| Mounting |
Peripheral Mount C-Face 182-TC |
Rotor Inertia | 0.49 kg.m^2 | |
| Mounting Orientation |
Horizontal Vertical |

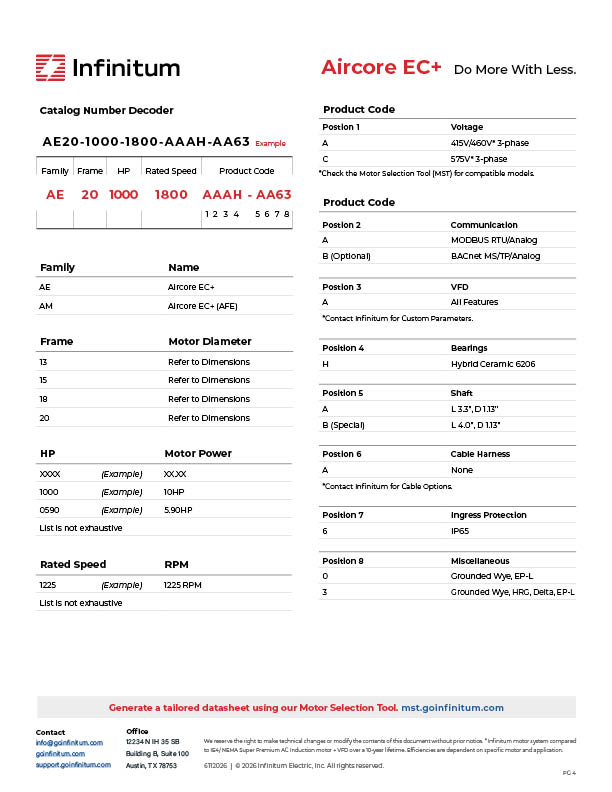

Grounding Brush | Included, DE | |
| *Calculated | ||||
| Power, Speed | ||||
| Frame Size | Rated Torque (Nm) | Rated Power (HP) | Rated Speed (RPM) | Weight (Lbs) |

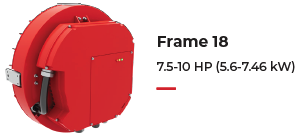

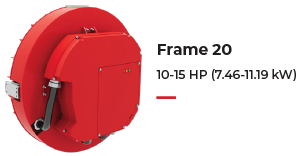

| AE20-x | 60 | 15 | 1800 | 135 |
| AE20-x | 40 | 15 | 3600 | 130 |
| AE20-x | 40 | 15 | 2700 | 130 |
| AE20-x | 40 | 10 | 1800 | 130 |
| AE18-x | 20 | 10 | 3600 | 100 |
| AE18-x | 30 | 10 | 2400 | 100 |
| AE18-x | 30 | 7.5 | 1800 | 100 |
| AE15-x | 22 | 7.5 | 2400 | 86 |
| AE15-x | 15 | 7.5 | 3600 | 86 |
| AE15-x | 20 | 5 | 1800 | 86 |
| AE15-x | 15 | 5 | 2400 | 86 |
| AE13-x | 10 | 5 | 3600 | 73 |
| AE13-x | 8.5 | 5 | 4200 | 73 |
| Controls & Communication | Ambient Conditions | |||
|
MODBUS TCP for I-con (Desktop or Mobile) |
Ambient Temp (Operation) | -13F to 104F (-25C to 40C)2% Power Derate per 1C up to 50C | ||
| Analog Input | 0-10V, 4-20mA | Ambient Temp (Storage) | -40F to 185F (-40 to 85C) | |
| Analog Output | 10V for Potentiometer | Altitude | 0 to 3300 ft. (0-1000M)9% Power Derate per 1000 M up to 4000 M | |
| Digital Input | 4x | Humidity (Operation & Storage) | 95% RH, No Condensation | |
| Digital Outputs | 2x | Contamination(Operation & Storage) | No conductive dust | |
| Relay | Analog Input | |||
| Aux Power | 250mA, 24VDC | Certifications | ||
| UL 1004-7, UL 1004-1, UL 61800-5-1, CSA 22.2 N077 | ||||

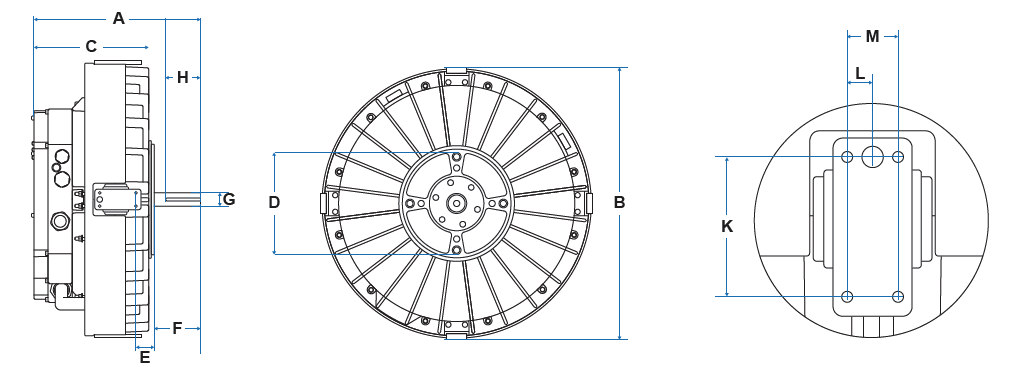

| Frame Size | A | B | C | D | E | F | G | H | K | L | M |
| AE20-X | 313.9 | 537.3 | 224.8 | 184.1 | 34.5 | 82.7 | 28.6 | 60.0 | 69.9 | 12.7 | 25.4 |
| AE18-X | 309.0 | 472.0 | 220.6 | 184.1 | 29.4 | 82.1 | 28.6 | 60.0 | 69.9 | 12.7 | 25.4 |
| AE15-X | 311.9 | 417.3 | 221.6 | 184.1 | 36.2 | 82.3 | 28.6 | 60.0 | 69.9 | 12.7 | 25.4 |
| AE13-X | 318.0 | 367.8 | 230.7 | 184.1 | 33.1 | 81.0 | 28.6 | 60.0 | 69.9 | 12.7 | 25.4 |
| All measurements in mm | |||||||||||
| Mounting & dimensions | |||
| There are four mounting pad locations. | Each pad is spaced 90° apart, containing 4 mounting holes and one lifting eye hole. | The DE face of the mounting block has threaded holes for four bolts (1/2”-13). | All bolt holes should be used for secure mounting of the motor to equipment. |
