Aircore EC Motor Parameters

Cam Witt

March 27, 2023 18:20
Updated

Download the list

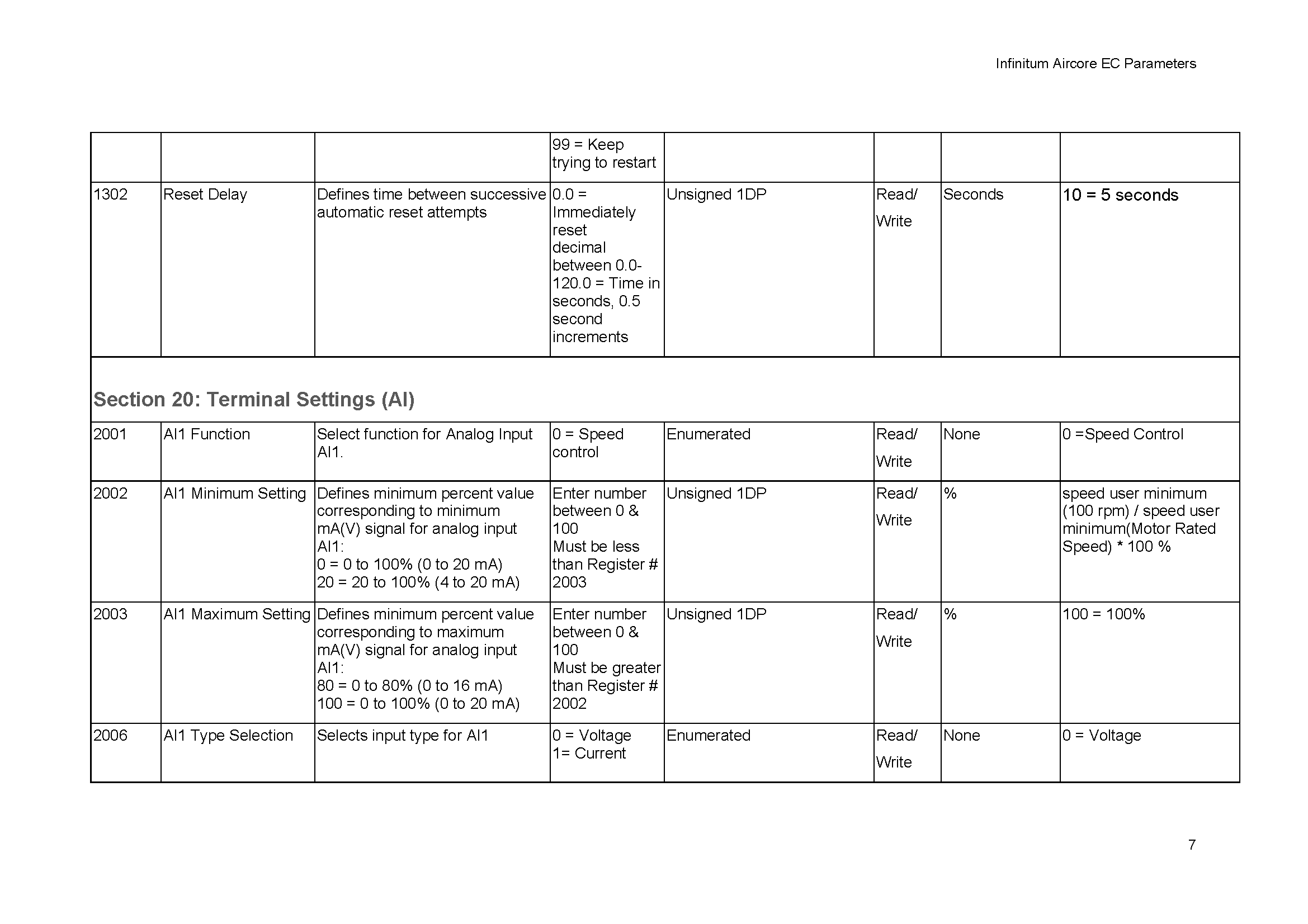

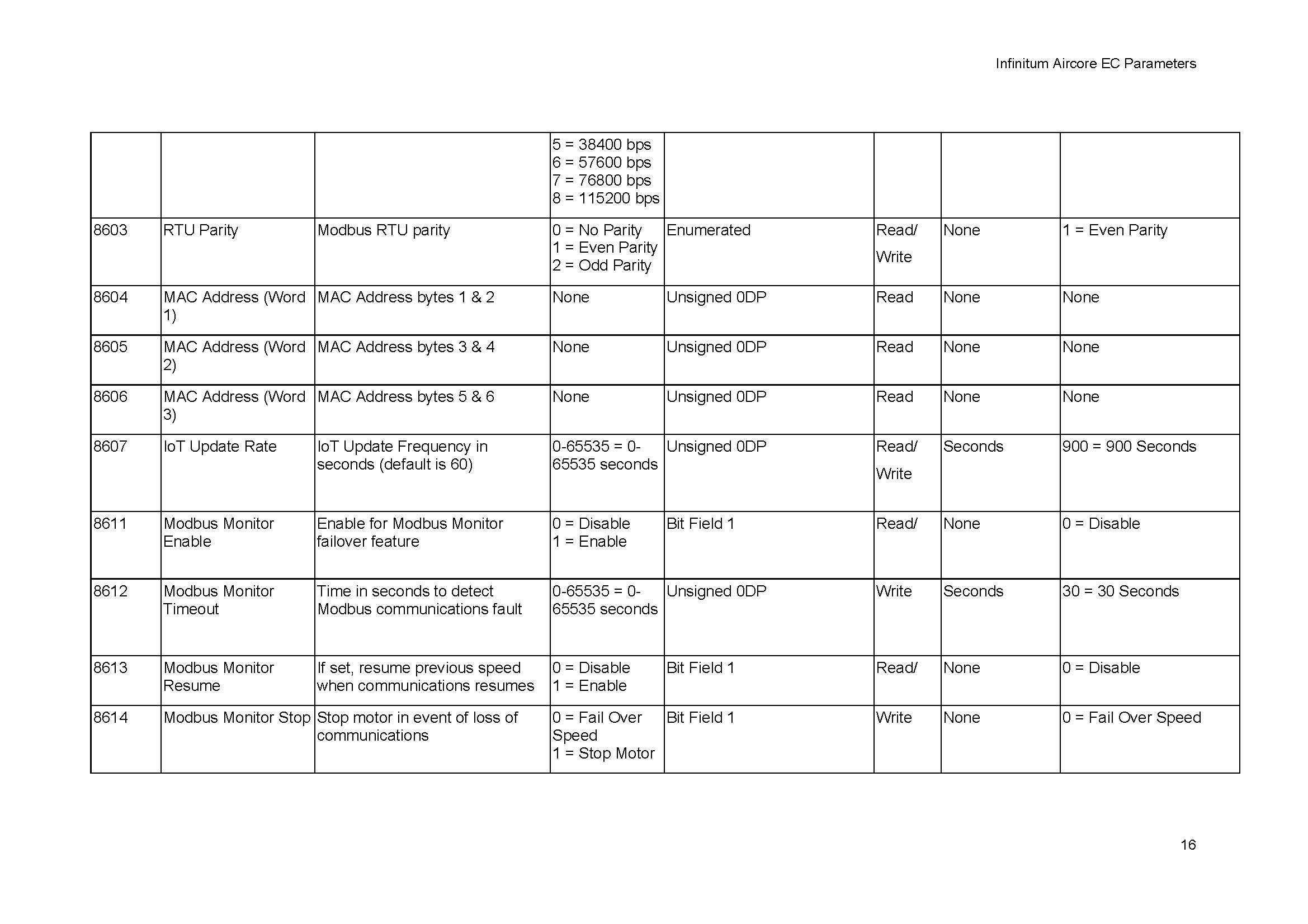

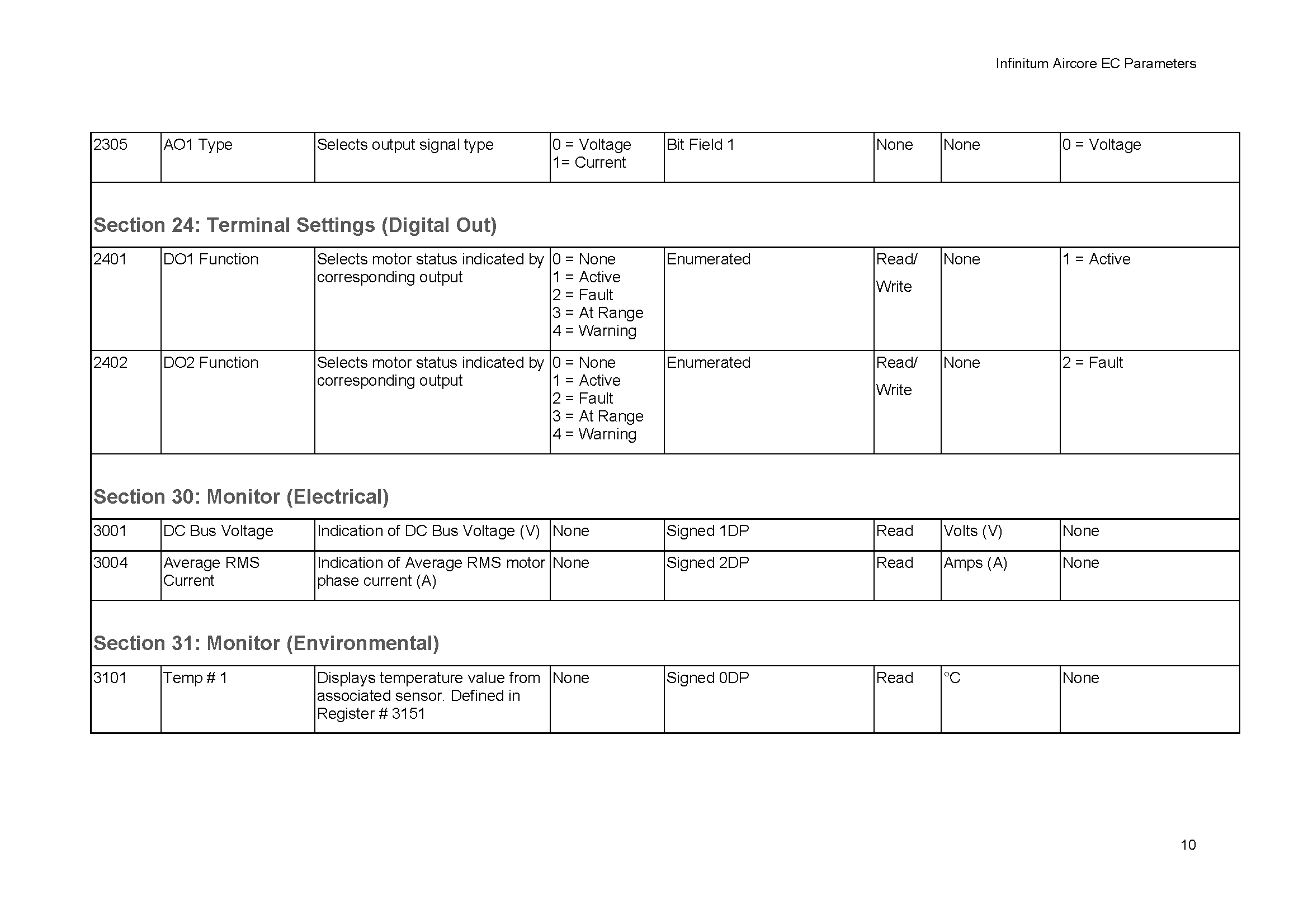

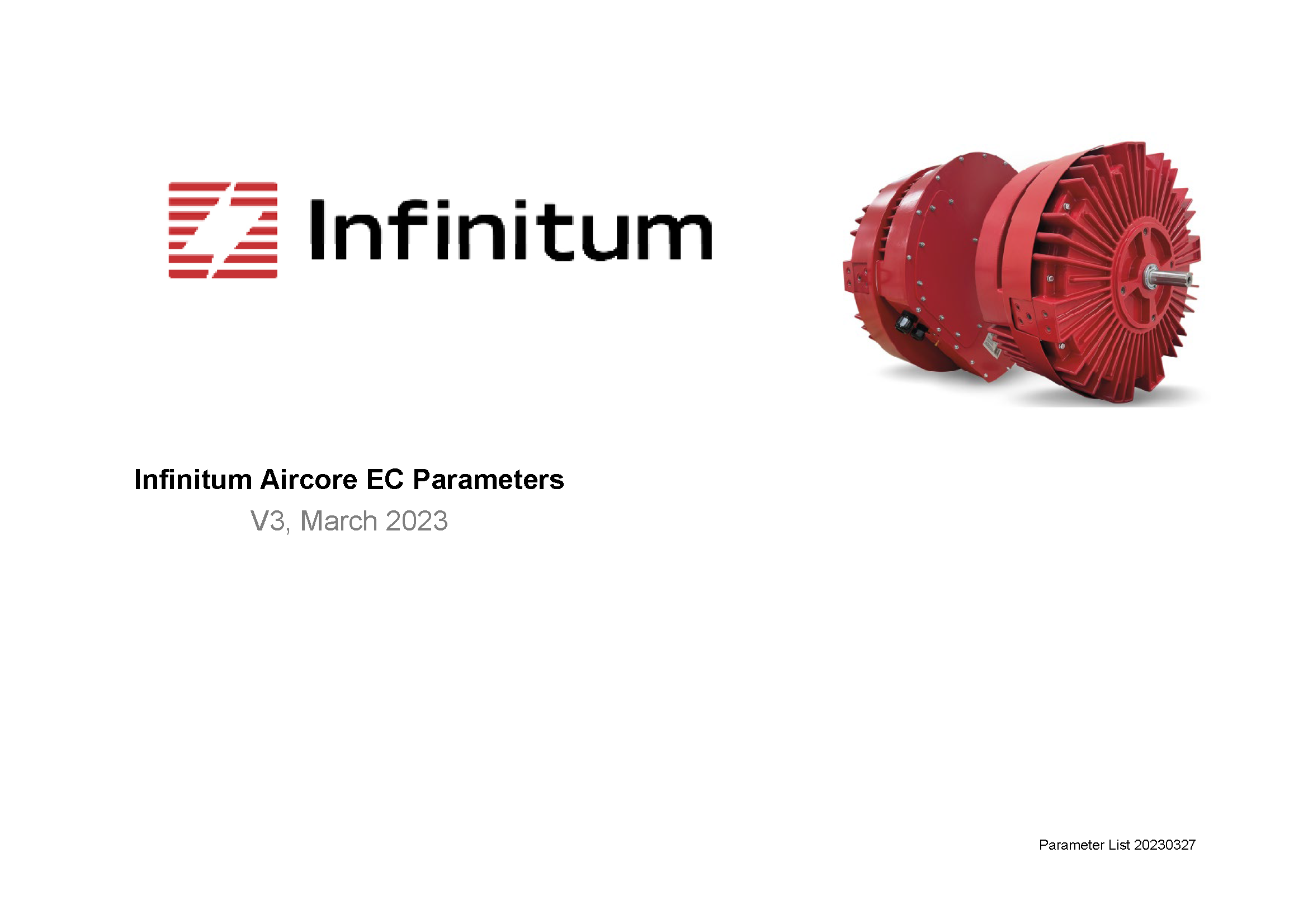

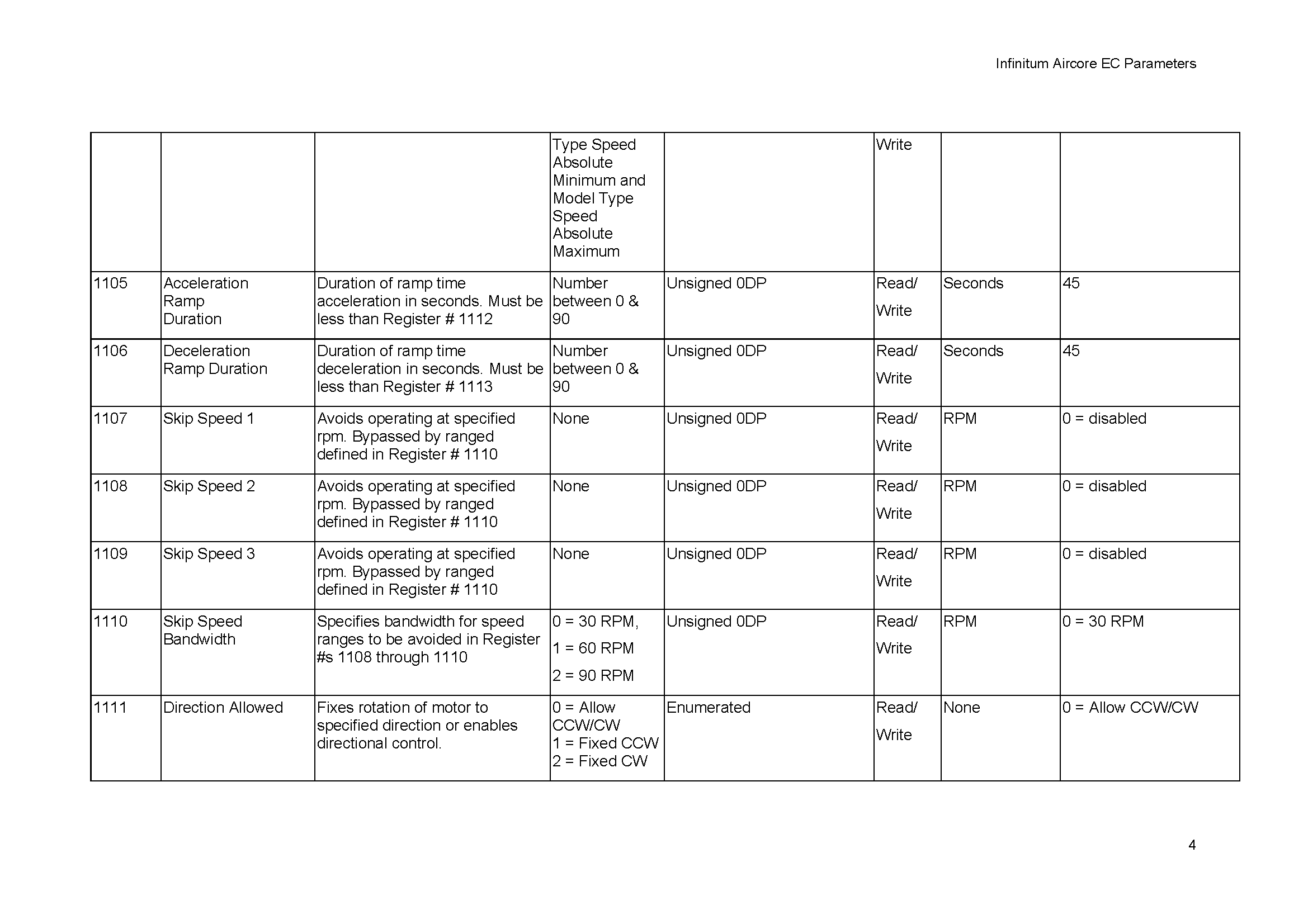

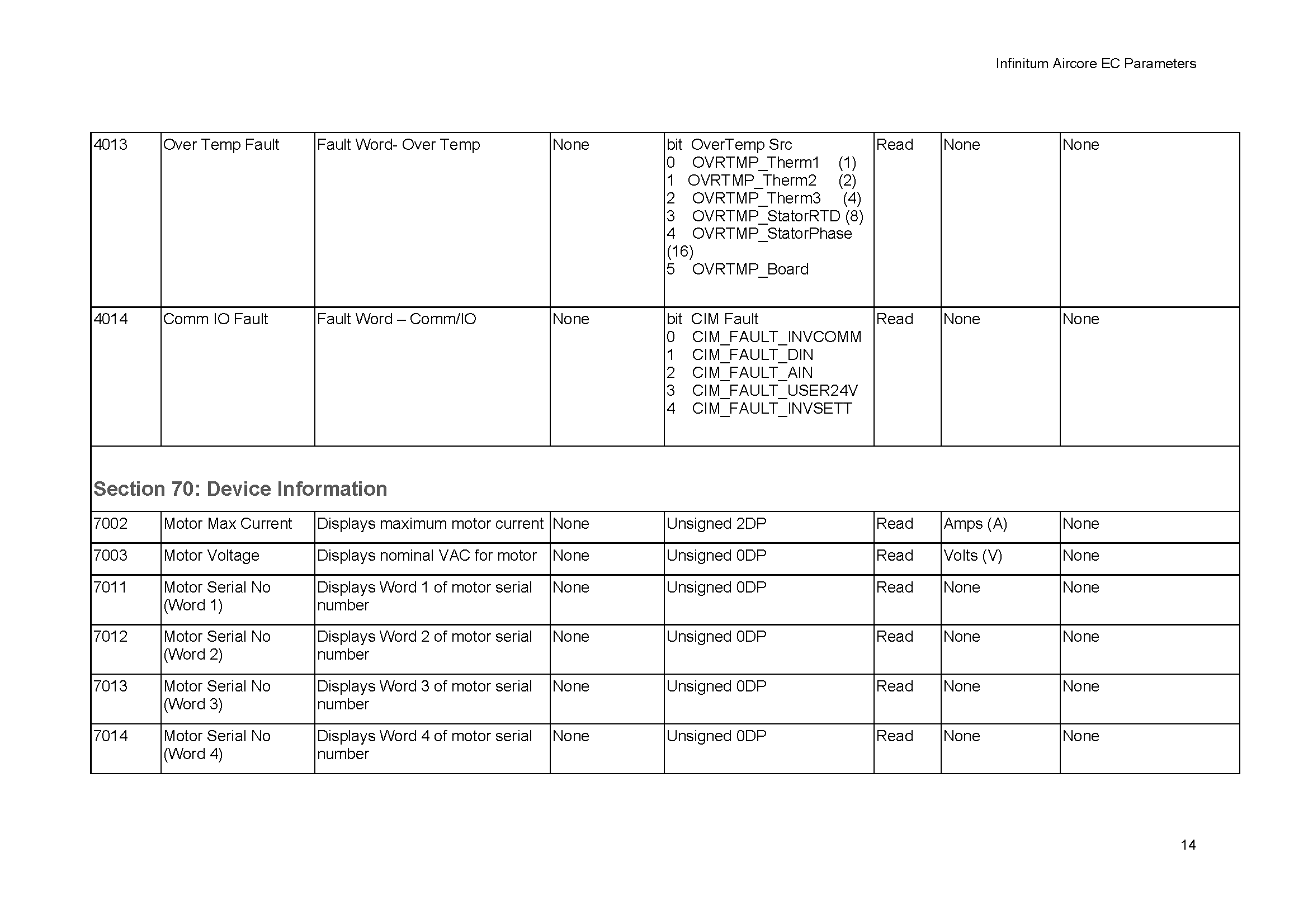

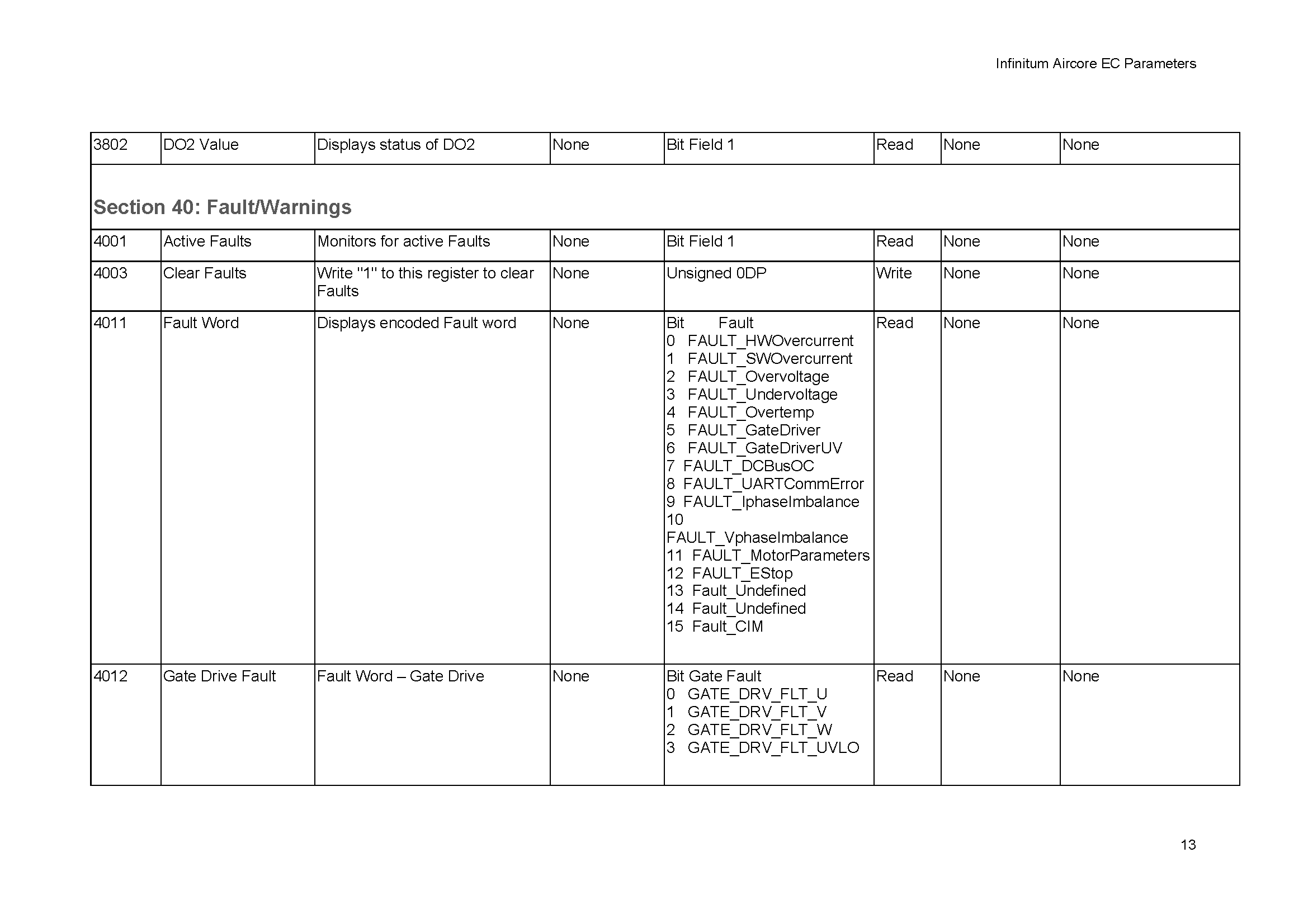

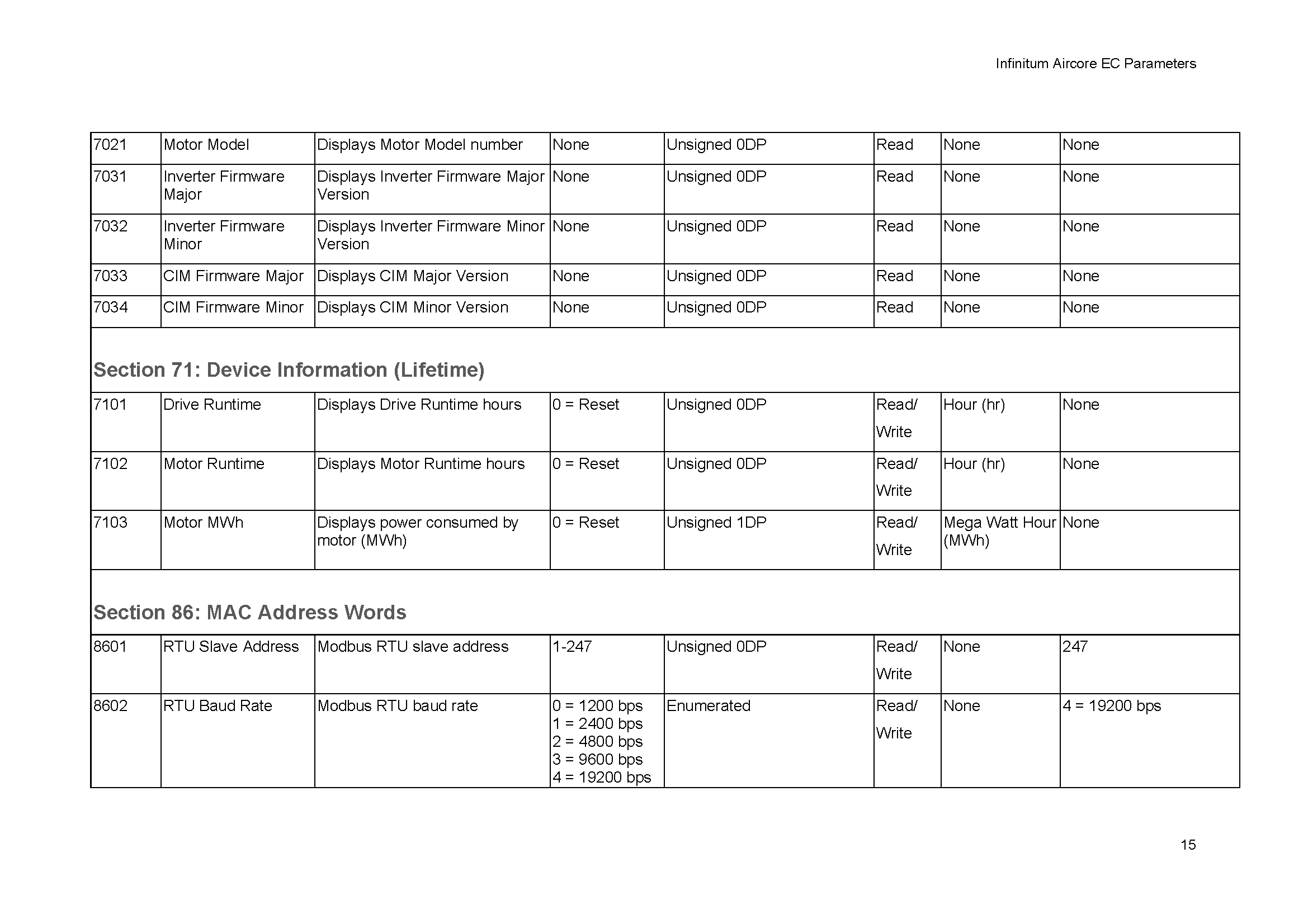

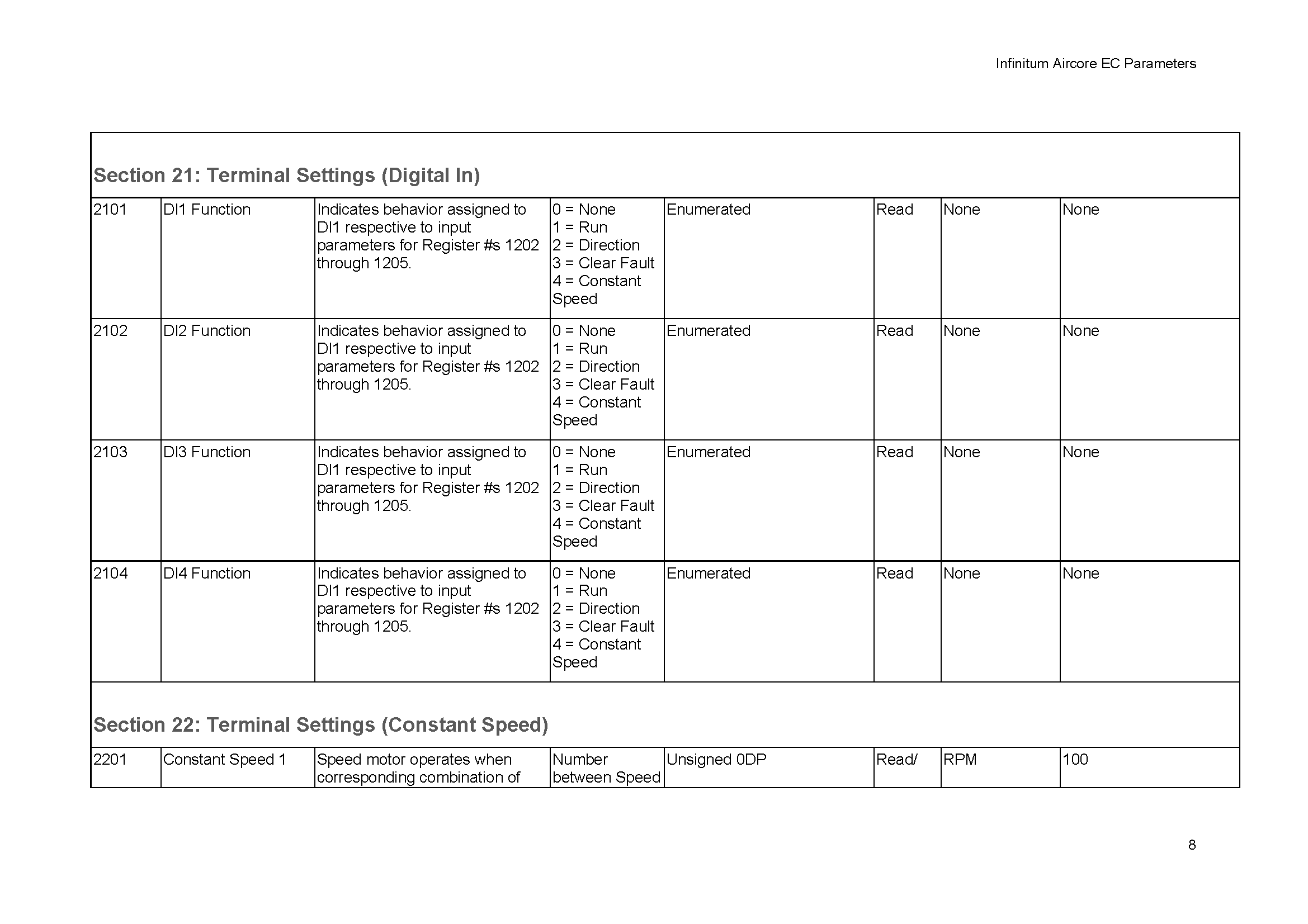

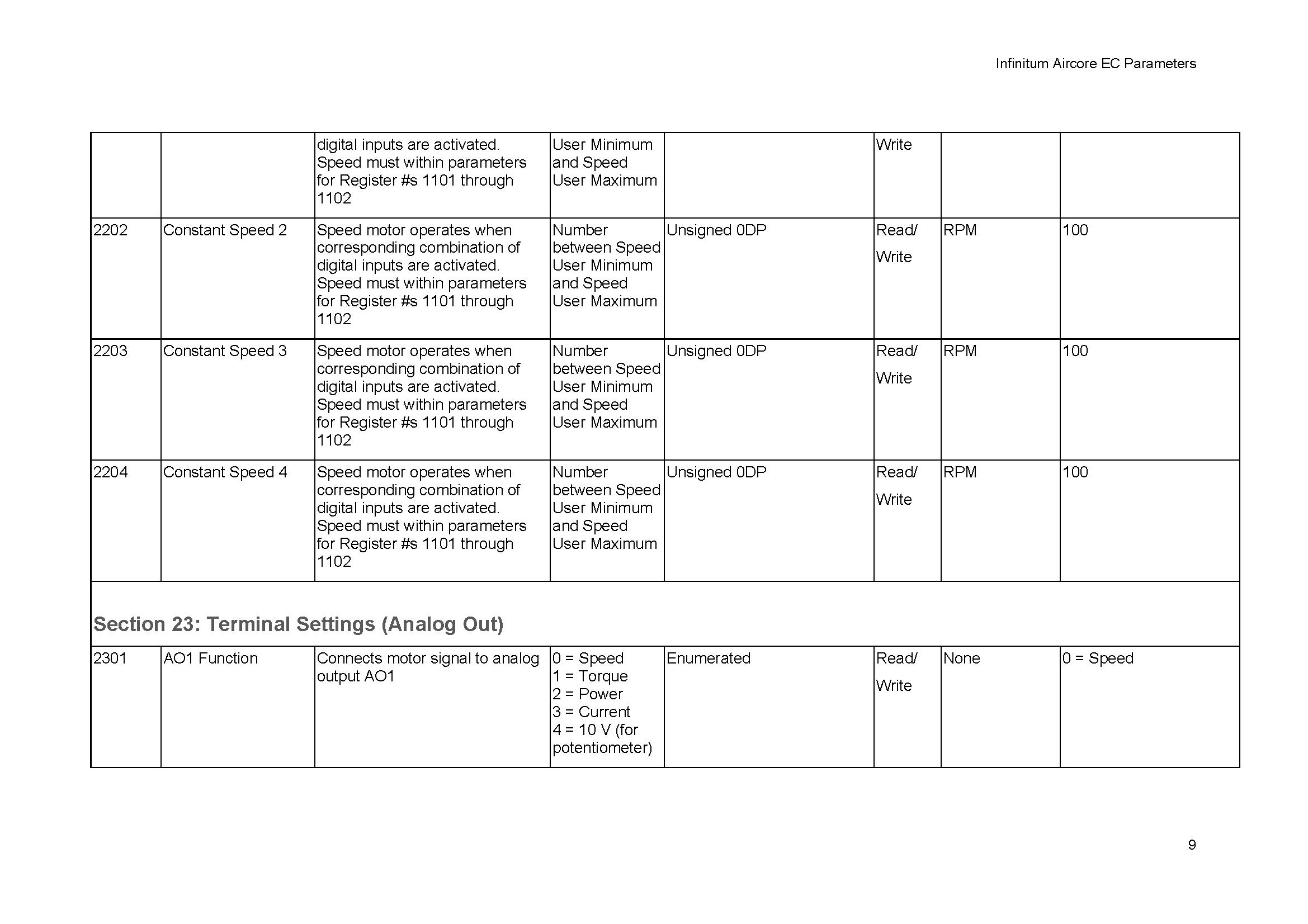

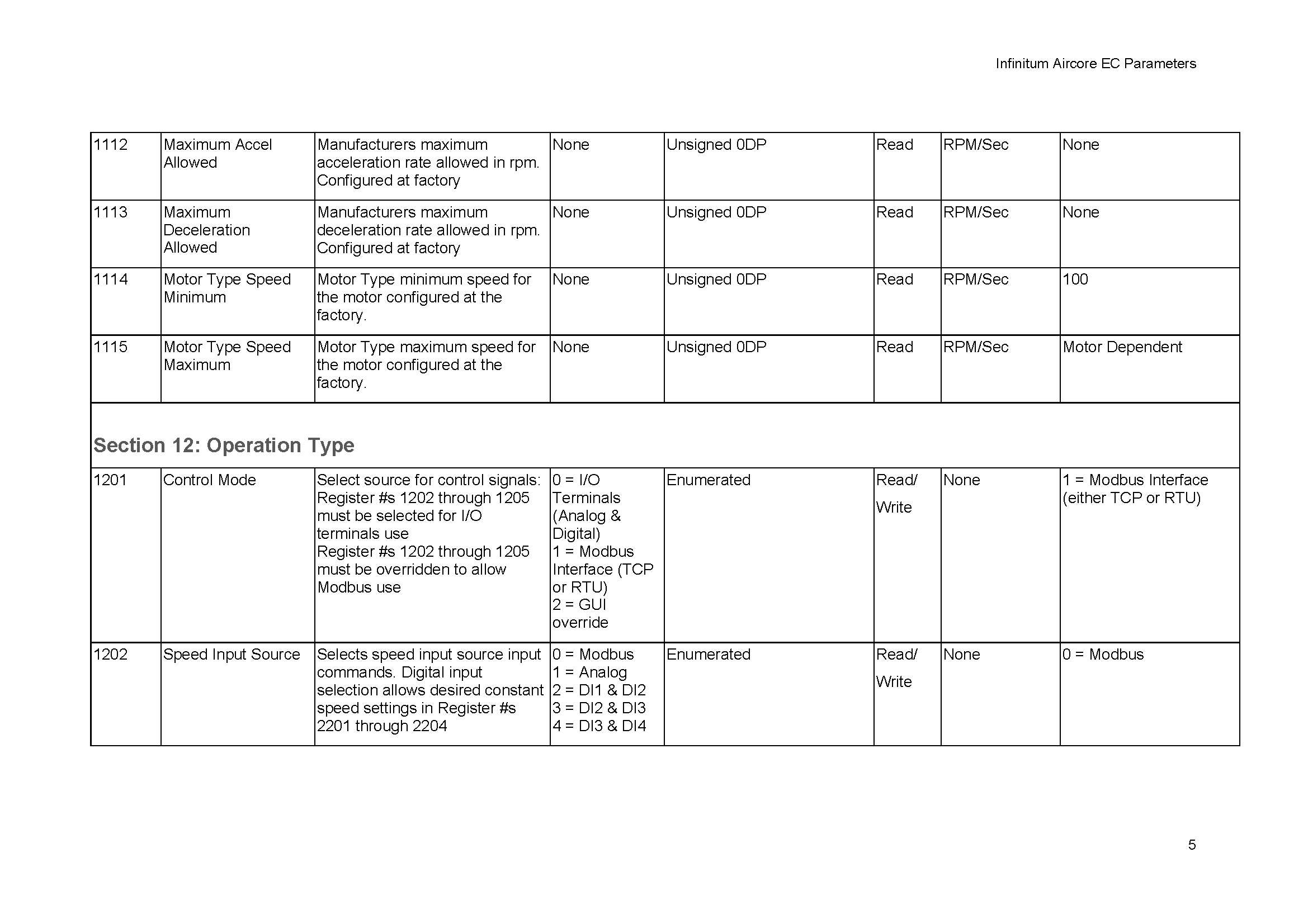

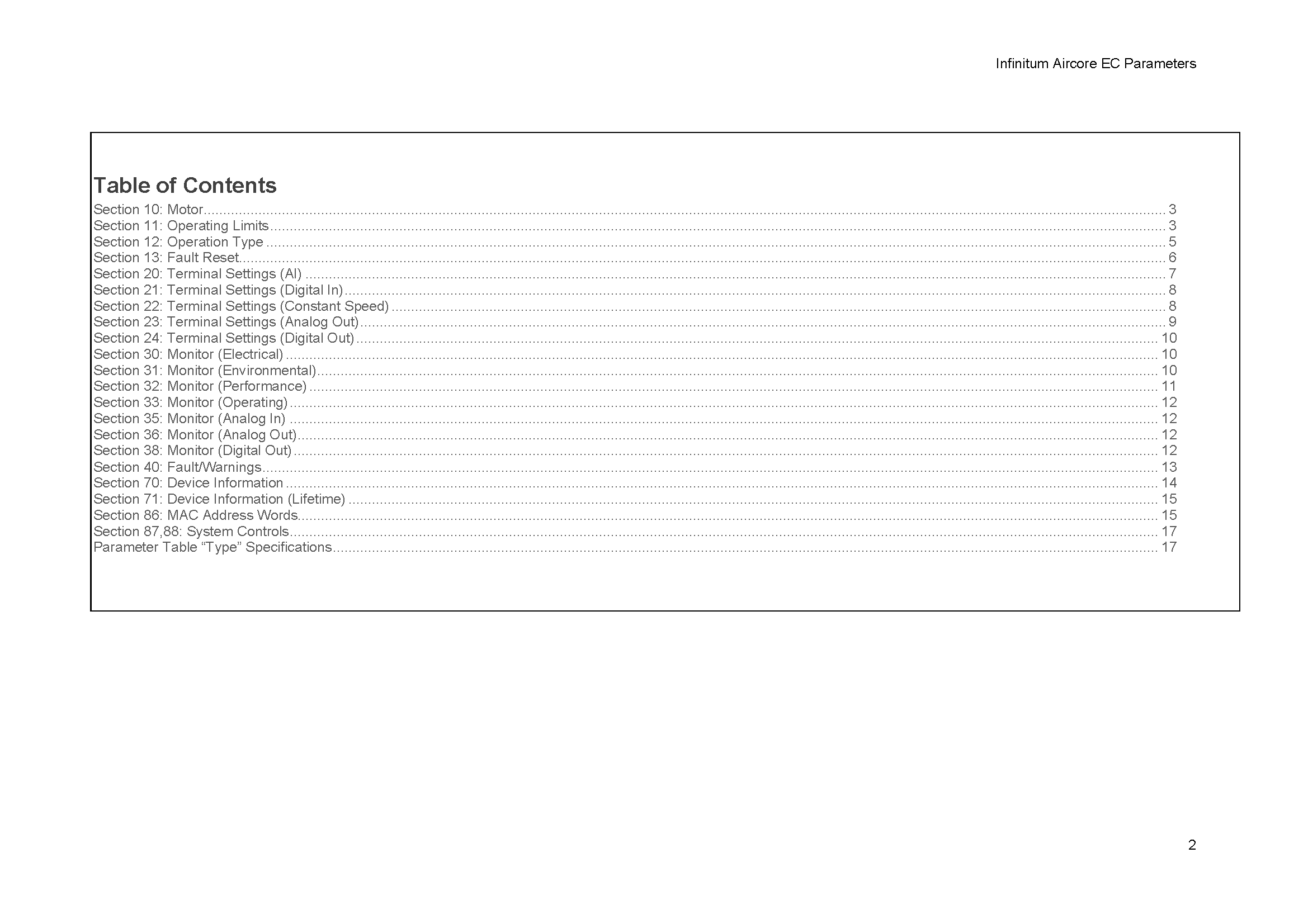

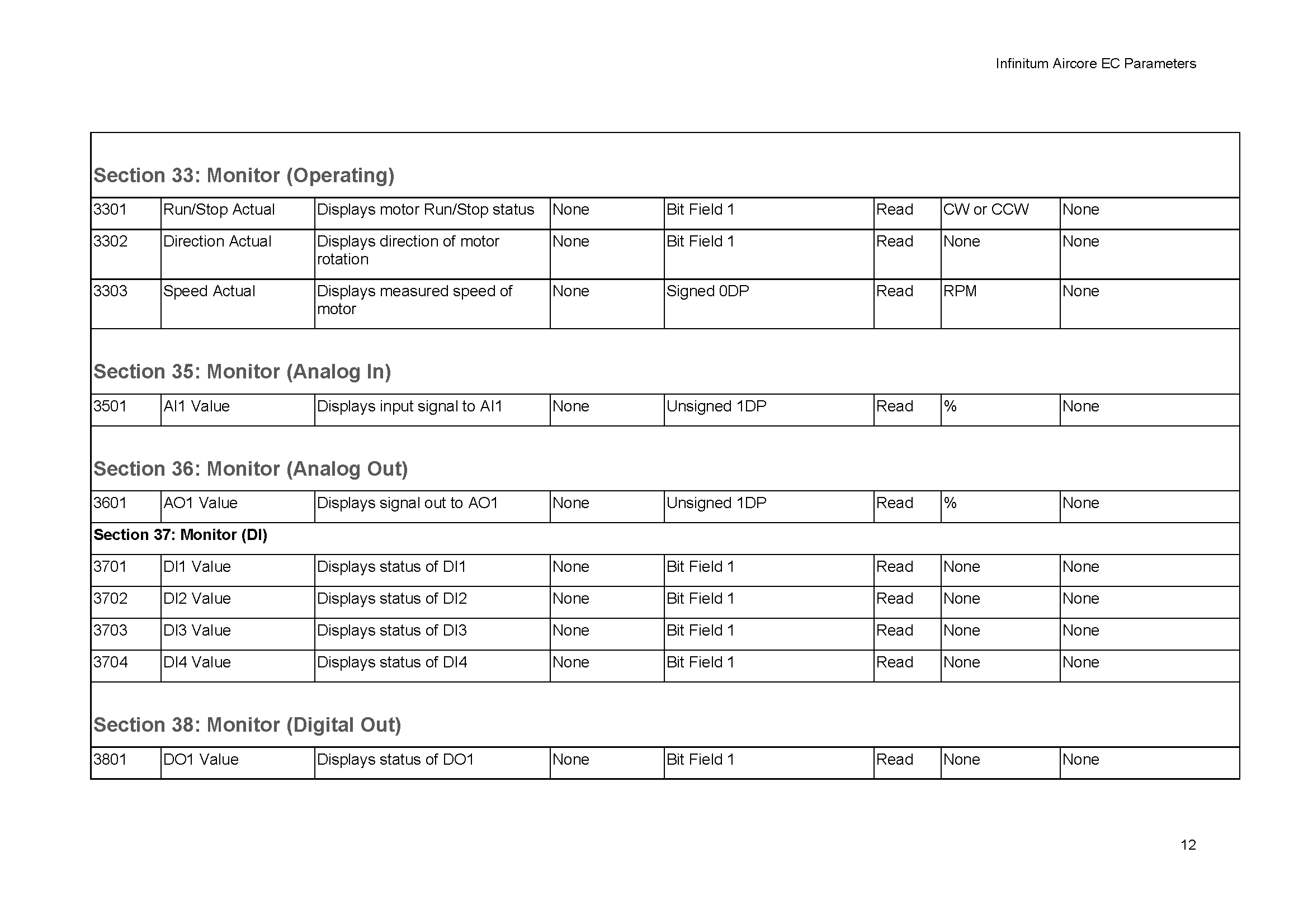

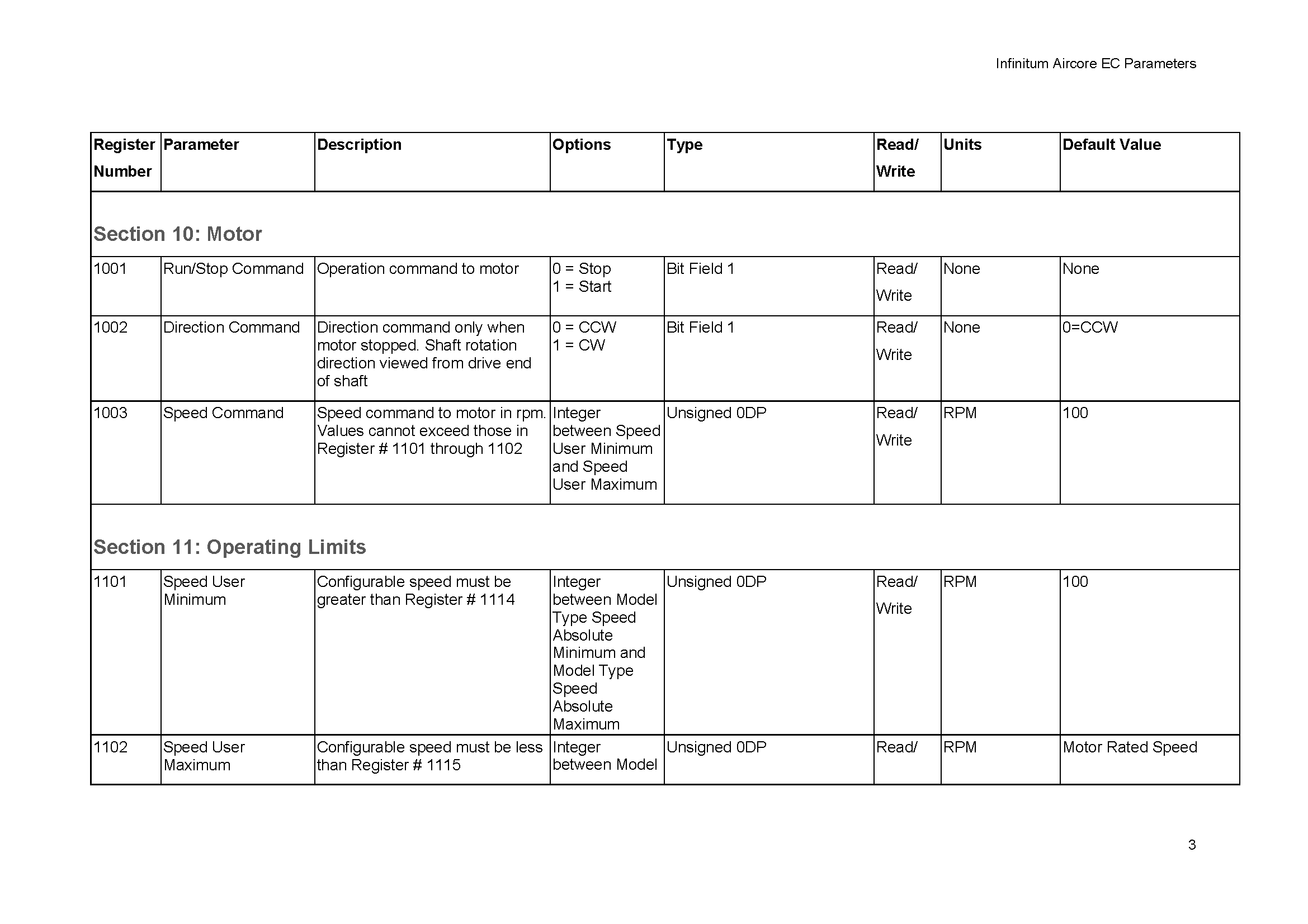

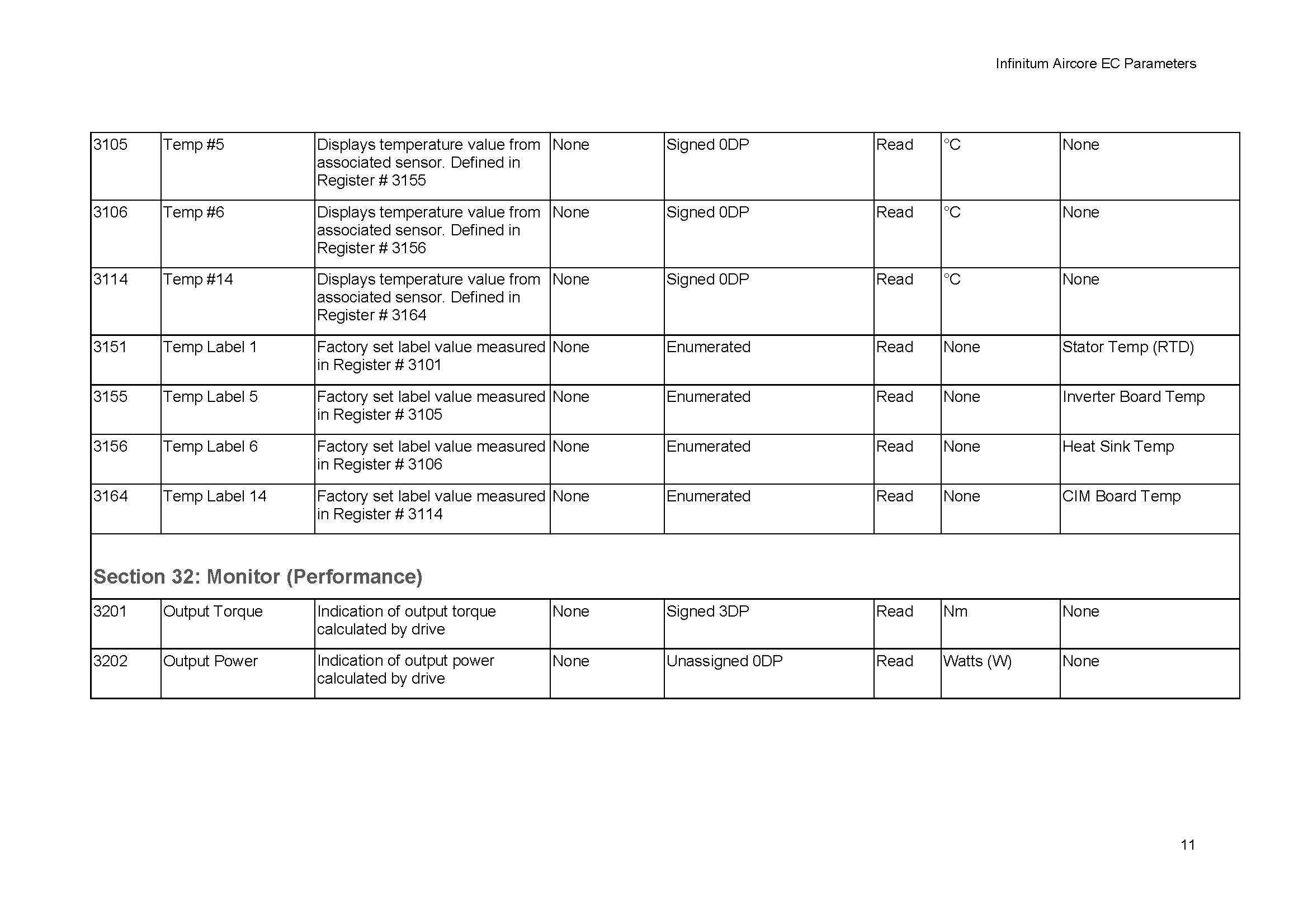

Parameter List 20230327.pdf
300 KB Download
